  11. One-Hole Compression Lug, 4 AWG Max, 3/8 in Stud, Long Barrel, Copper, None, 5 PK

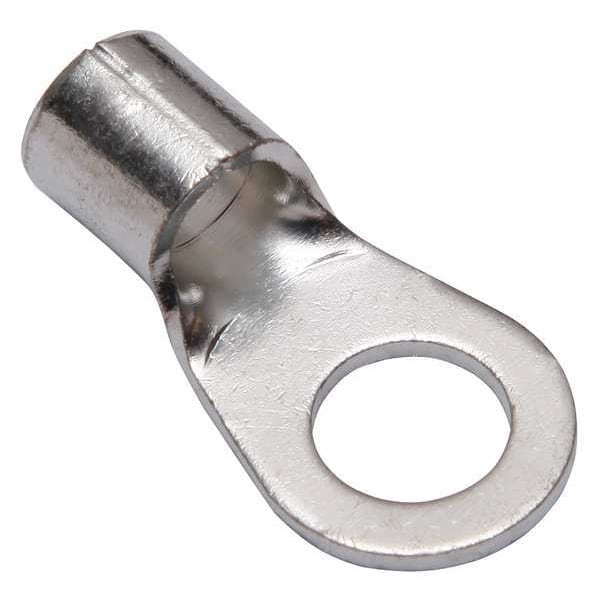

Burndy One-Hole Compression Lug, 4 AWG Max, 3/8 in Stud, Long Barrel, Copper, None, 5 PK YAD4CM10E38 - main

One-Hole Compression Lug, 4 AWG Max, 3/8 in Stud, Long Barrel, Copper, None, 5 PK

  • Mfr # YAD4CM10E38

  • Zoro # G6143715

product price: $9.89
/pk 5, $1.98/ea

Key Features

For Wire Size
4 AWG
For Conductor Material
Copper
For Stud Size
3/8 in
Material
Copper
Barrel Size
Long
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD4CM10E38
Zoro #
G6143715
UPC #
781810668597
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
4 AWG
For Stud Size
3/8 in
Barrel Size
Long
Tongue Width
0.71 in
Overall Length
1.38 in
Tongue Width - Wire Connector
0.71 in
Cable Size
4 AWG
Length
1.38"
Barrel Length
0.43 in
Width
0.71"
Minimum Wire Size
4 AWG
Tongue Thickness
0.06 in
Hole Diameter
0.41 in
Strip Length
1/2 in
Maximum Wire Size
4 AWG
Barrel Outside Diameter
0.41 in
Tongue Length
0.95 in
Dimension - Hole Size inch
0.41 in
Dimension - Pad Width inch
0.71 in
Dimension - L Length Overall mm
35 mm
Dimension - Strip Length inch
1 to 2
Dimension - B Length inch
0.43 in
Dimension - Outside Diameter inch
0.41 in
Dimension - Length Overall inch
1.38 in
Dimension - Bolt Size fraction
2023-03-08
Conductor - Copper Str Size
4 AWG
Conductor Size
4 AWG
Dimension - Stud Size inch
44993

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Inspection Hole
No
Die Code
1017
Color Code
None
Standards
UL 467
Peep Hole
No
Hole Center to End
1.020"
Tongue Style
Ring
Connector Type
YAD
Seam
Brazed
Wire Range
4 AWG
Connection Material
Tin Plater Copper
Plate Material
Tin
Insulation Color
Bare
Max. Temp.
302 Degrees F
Insulation Type
Non-Insulated
Max. Voltage
600 V
Termination Style
Crimp
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Contact Finish
Tin
Minimum Operating Temperature
302 Degrees F
Barrel Style
Brazed
Insulation Material
None
Hole Spacing
0.59 in
Compatible with Product Type
Code, Flex Cable
Seam Style
Brazed
Maximum Operating Temperature
302 Degrees F
RoHS Compliant
Yes
Maximum Voltage
600 V
Insulation Coverage
None
Contact Material
Copper
Terminal Shape
Ring Tongue
Item Type
3B
Plated
Y
Conductor Type
CU C Str-SizeCU C Flex-Size
Trade Name
HYLUGâ„¢
Type
Ring Tongue
Feature - Barrel Type
Long
Industry Standard(s)
UL467
Plating Type
Tin
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Physical Attribute - Tongue Type
Ring
Voltage - Maximum
600 V

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 4 AWG, Maximum Wire Size 4 AWG, Termination Style Crimp, Tongue Width 0.71 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.43 in, Barrel Outside Diameter 0.41 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221
