  11. One-Hole Compression Lug, 4/0 AWG Max, Standard Barrel, Copper, Purple

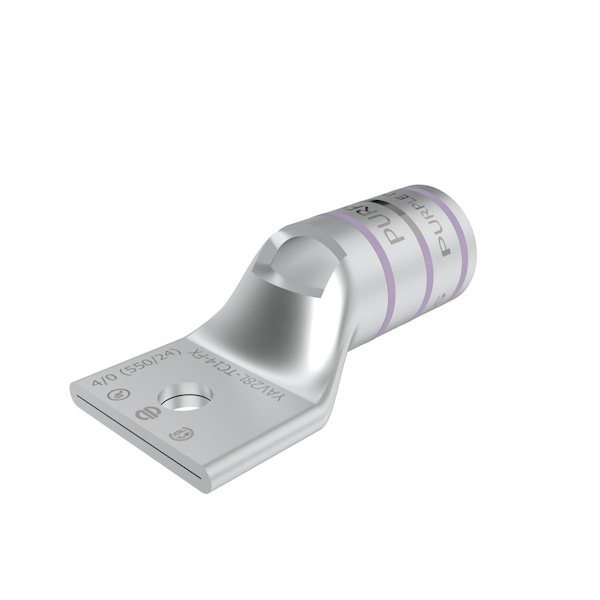

Burndy One-Hole Compression Lug, 4/0 AWG Max, Standard Barrel, Copper, Purple YAV28LTC14FX - main

One-Hole Compression Lug, 4/0 AWG Max, Standard Barrel, Copper, Purple

  • Mfr # YAV28LTC14FX

  • Zoro # G005778291

product price: $11.49
/ea

Key Features

Material
Copper
Color Code
Purple
Die Code
15
Standards
UL 486A-486B
Conductor - Copper Flex M Size
4/0 AWG
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAV28LTC14FX
Zoro #
G005778291
UPC #
-
Country of Origin
United States

Dimensions

Conductor - Copper Flex M Size
4/0 AWG
Dimension - B Length fraction
1 in
Conductor - Copper Flex I Size
4/0 AWG
Conductor - CopperWeld Str Size
4/0 E AWG;4/0 EK AWG;4/0 F AWG;4/0 G AWG;4/0 V AWG
Dimension - Outside Diameter inch
0.77 in
Dimension - N inch
0.31 in
Conductor - Copper Flex K Size
4/0 AWG
Dimension - Length Overall inch
2.23 in
Conductor - Copper DLO Size
4/0 (550/#24) DLO
Dimension - Stud Size inch
44930
Dimension - Hole Size mm
7 mm
Conductor - Copper Str Navy Size
200 (61) Navy
Dimension - Hole Size inch
0.27 in
Conductor - Copper Str Size
4/0 AWG
Dimension - Z inch
0.33 in
Dimension - L Length Overall mm
57 mm
Conductor - Copper Flex G Size
4/0 AWG
Dimension - Thread Size
1/4 in
Conductor - Copper Flex H Size
4/0 AWG
Dimension - Bolt Size fraction
44930
Dimension - B Length inch
1.03 in
Dimension - Pad Width inch
1.14 in
Dimension - Strip Length inch
42370
Dimension - Bolt Hole Size inch
0.27 in
Conductor - Copper Flex G Size Range
4/0 AWG
Dimension - Hole Size fraction
2023-01-04
Conductor - Copper Str Compact Size
"4/0 AWG"
Dimension - Stud Size fraction
2023-01-04
Conductor Size
4/0 AWG
Conductor - Copper Str Size Range
4/0 AWG
Conductor - Copper DLO Size Range
4/0 AWG
Dimension - Bolt Size inch
0.25
Conductor - Copper Flex K Size Range
4/0 AWG
Conductor - Copper Flex I Size Range
4/0 AWG
Conductor - Copper Flex H Size Range
4/0 AWG
For Wire Size
4/0 AWG
Tongue Width
1.14 in
Barrel Size
Standard

Details

Material
Copper
Color Code
Purple
Die Code
15
Standards
UL 486A-486B
Item
One-Hole Compression Lug
Physical Attribute - Tongue Angle
Straight
Feature - Barrel Style
Chamfered
Physical Attribute - Number of Holes
1
Rating - KVA
35 kV
Die Index
15
Plating Type
Tin
Plated
Y
Conductor - Material
Copper
Type
Standard Barrel, Tin Plated
Rating - Minimum Voltage
600
Certification - CSA Approved
Yes
Voltage - Maximum
35000
Application
For Flex Conductors
Feature - Barrel Type
Standard
Conductor Type
CODE/FLEX
Voltage Rating
35 kV
Finish Type
Tin-Plated
Industry Standard(s)
UL 486A-486B
Trade Name
HYLUGâ„¢
UL Listed
Yes
Tongue Angle
Straight
For Conductor Material
Copper
Number of Holes
1

Description

Tin Plated

Restrictions
