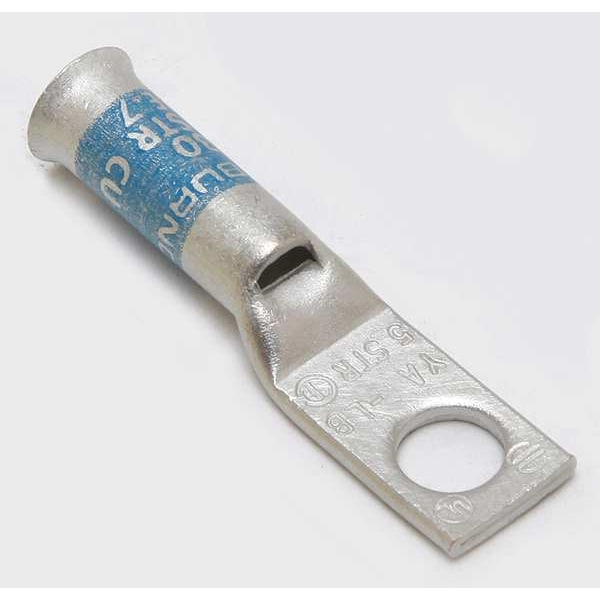

One-Hole Compression Lug, 5 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Blue
Mfr # YA5CLB
Zoro # G4654377
product price:Â
$
7.25
/ea
Key Features
For Wire Size
5 AWG
For Conductor Material
Copper
For Stud Size
1/4 in
Material
Copper
Barrel Size
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- YA5CLB
- Zoro #
- G4654377
- UPC #
- 781810556030
- Country of Origin
- United States
Dimensions
- For Wire Size
- 5 AWG
- For Stud Size
- 1/4 in
- Barrel Size
- Standard
- Tongue Width
- 0.44 in
- Width
- 0.44"
- Barrel Length
- Short
- Cable Size
- 6 AWG
- Length
- 1.173"
- Length (Straight Wireway)
- 1.18 in
- Conductor - Copper Flex H Size
- 6 AWG
- Conductor - Copper Str Size Range
- 5 AWG
- Conductor - Copper Str Navy Size Range
- 30 (19) Navy
- Conductor - Copper Flex K Size
- 6 AWG
- Dimension - N inch
- 0.31
- Conductor - Copper Flex G Size
- 6 AWG
- Conductor - Copper Str Navy Size
- 30 (19) Navy
- Dimension - Outside Diameter inch
- 0.3
- Dimension - B Length inch
- 0.81
- Dimension - Stud Size inch
- 1/4 in
- Dimension - L Length Overall mm
- 43.9
- Conductor - Copper Flex I Size
- 6 AWG
- Conductor Size
- 5 AWG
- Dimension - Z inch
- 0.328
- Dimension - Bolt Size inch
- 0.25
- Dimension - Pad Width inch
- 0.44
- Dimension - Stud Size fraction
- 2023-01-04
- Conductor - Copper Solid Size
- 5 AWG
- Dimension - Length Overall inch
- 1.173
- Conductor - Copper Flex M Size
- 6 AWG
- Dimension - Strip Length inch
- 7/8 in
- Dimension - Hole Size fraction
- 2023-01-04
- Dimension - Hole Size inch
- 0.272
- Dimension - Hole Size mm
- 6.91
- Conductor - Copper Str Size
- 5 AWG
- Dimension - Bolt Hole Size inch
- 0.272
- Conductor - Copper Flex M Size Range
- 6 AWG
- Dimension - Bolt Size fraction
- 2023-01-04
- Conductor - Copper DLO Size
- 6 (61/#24) DLO
- For Stranded Copper Wire Size - Maximum
- 5 AWG
Description
Compression Lug, Barrel Size Standard, Color Code Blue, Die Code 1,014, For Stud Size 1/4 in, For Stranded Copper Wire Size - Maximum 5 AWG, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Standards CSA Certified, UL 486A-486B, UL Listed, Connector Type Belled Straight Barrel, Contact Finish Tin, For Wire Size 5 AWG, 6 AWG, For Wire Type Solid, Stranded
