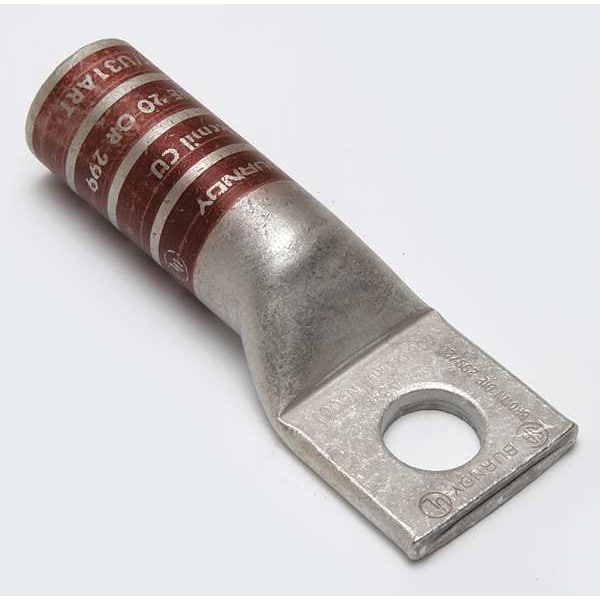

One-Hole Compression Lug, 500 kcmil Max, 1/2 in Stud, Long Barrel, Copper, Brown
Mfr # YA34N
Zoro # G4689404
CAD Available
product price: $28.15
/eaKey Features
CAD Drawing
Cable Size
500 kcmil
Connector Type
Long Barrel
Width
1.55"
Material
Copper
Length
4.32"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YA34N
Zoro #
G4689404
UPC #
781810555620
Country of Origin
United States
Dimensions
Cable Size
500 kcmil
Width
1.55"
Length
4.32"
Barrel Length
Long
Overall Length
4.32 in
Overall Width
1.56 in
Length (Straight Wireway)
4.33 in
Hole Size
0.56 in
Tongue Length
1.27 in
For Wire Size
500 kcmil
Strip Length
2 5/16 in
Barrel Outside Diameter
1.06 in
Tongue Thickness
0.23 in
For Stranded Copper Wire Size - Maximum
500 kcmil
For Stud Size
1/2 in
For Stranded Copper Wire Size - Minimum
500 kcmil
Tongue Width
1.55 in
Barrel Size
Long
Dimension - Bolt Size inch
0.5
Dimension - Hole Size inch
0.56 in
Conductor - Copper Str Size Range
500 kcmil
Dimension - Bolt Size fraction
1 to 2
Dimension - Stud Size inch
1 to 2
Dimension - N inch
0.63 in
Dimension - Length Overall inch
4.32 in
Dimension - Z inch
0.64 in
Dimension - Stud Size fraction
1 to 2
Dimension - L Length Overall mm
110 mm
Dimension - Bolt Hole Size inch
0.52 in
Dimension - Hole Size mm
14 mm
Dimension - Pad Width inch
1.55 in
Dimension - Hole Size fraction
1 to 2
Dimension - B Length inch
2.25 in
Dimension - Outside Diameter inch
1.06 in
Dimension - B Length fraction
2-1/4 in
Conductor Size
500 KCMIL
Dimension - Strip Length inch
42405
Conductor - Copper Str Size
500 kcmil
Description
Compression Lug, Barrel Size Long, Color Code Brown, Die Code 20, 299, Tongue Angle Straight, Tongue Width 1.55 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 500 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
