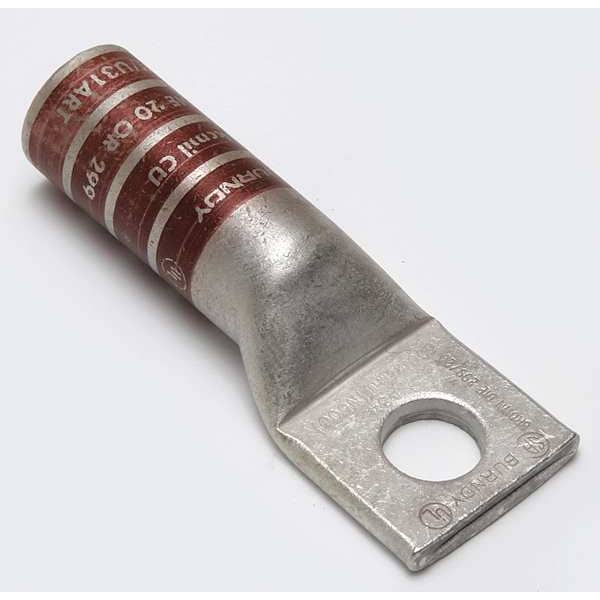

One-Hole Compression Lug, 500 kcmil Max, 1/2 in Stud, Long Barrel, Copper, Brown
Mfr # YA34T8
Zoro # G4699371
product price: $42.35
/eaKey Features
Cable Size
500 kcmil
Connector Type
Long Barrel
Width
1.55"
Material
Copper
Length
4.47"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YA34T8
Zoro #
G4699371
UPC #
781810555910
Country of Origin
United States
Dimensions
Cable Size
500 kcmil
Width
1.55"
Length
4.47"
Barrel Length
Long
Overall Width
1.56 in
Overall Length
4.47 in
Length (Straight Wireway)
4.47 in
For Wire Size
500 kcmil
Tongue Length
1.52 in
For Stranded Copper Wire Size - Minimum
500 kcmil
Barrel Size
Long
Tongue Width
1.55 in
Hole Size
0.56 in
For Stud Size
1/2 in
Barrel Outside Diameter
1.06 in
Tongue Thickness
0.22 in
For Stranded Copper Wire Size - Maximum
500 kcmil
Dimension - Inside Diameter inch
0.83 in
Dimension - Z inch
0.77 in
Dimension - Pad Width inch
1.55 in
Conductor - Copper Str Size
500 kcmil
Conductor - Copper Str Size Range
500 kcmil
Dimension - Bolt Size inch
0.5
Dimension - B Length fraction
2-1/4 in
Dimension - Hole Size inch
0.56 in
Dimension - Length Overall inch
4.47 in
Dimension - Bolt Size fraction
1 to 2
Dimension - L Length Overall mm
114 mm
Dimension - B Length inch
2.25 in
Dimension - Hole Size mm
14 mm
Conductor Size
500 KCMIL
Dimension - Hole Size fraction
1 to 2
Dimension - N inch
0.75 in
Dimension - Outside Diameter inch
1.06 in
Dimension - Stud Size fraction
1 to 2
Description
Compression Lug, Barrel Size Long, Color Code Brown, Die Code 20, 299, Tongue Angle Straight, Tongue Width 1.55 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 500 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
