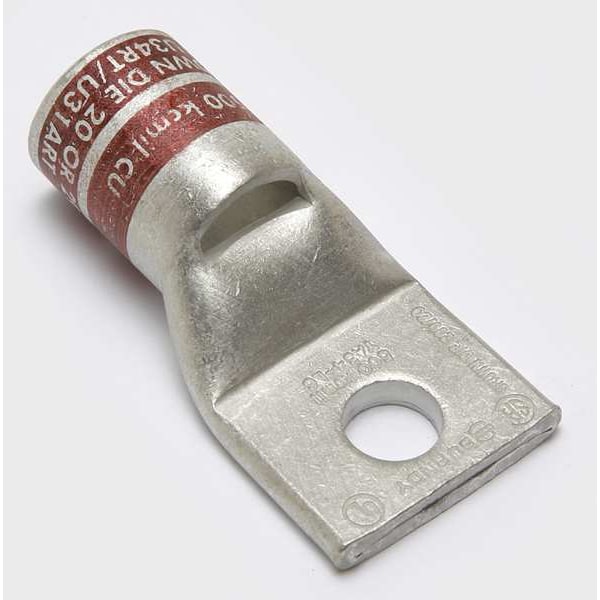

One-Hole Compression Lug, 500 kcmil Max, 1/2 in Stud, Standard Barrel, Copper, Brown
Mfr # YA34L6
Zoro # G4696151
product price: $27.13
/eaKey Features
For Wire Size
500 kcmil
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Standard
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YA34L6
Zoro #
G4696151
UPC #
781810559468
Country of Origin
United States
Dimensions
For Wire Size
500 kcmil
For Stud Size
1/2 in
Barrel Size
Standard
Tongue Width
1.55 in
Cable Size
500 kcmil
Width
1.55"
Barrel Length
Short
Length
3.12"
Overall Width
1.56 in
Overall Length
3.12 in
Length (Straight Wireway)
3.12 in
Tongue Thickness
0.23 in
For Stranded Copper Wire Size - Minimum
500 kcmil
Strip Length
1 7/16 in
Hole Size
0.51 in
For Stranded Copper Wire Size - Maximum
500 kcmil
Tongue Length
1.08 in
Barrel Outside Diameter
1.06 in
Conductor Size
500 KCMIL
Dimension - Z inch
0.55 in
Dimension - Strip Length inch
42376
Dimension - Hole Size mm
13 mm
Dimension - Bolt Size fraction
1 to 2
Dimension - Hole Size fraction
1 to 2
Dimension - Hole Size inch
0.53
Dimension - Bolt Hole Size inch
0.52 in
Dimension - B Length inch
1.27 in
Conductor - Copper Str Size Range
500 kcmil
Dimension - Length Overall inch
3.12 in
Dimension - B Length fraction
1-1/4 in
Dimension - L Length Overall mm
79 mm
Dimension - Stud Size fraction
1 to 2
Dimension - D inch
1.08 in
Dimension - Pad Width inch
1.55 in
Dimension - N inch
0.53 in
Dimension - Stud Size inch
1 to 2
Conductor - Copper Str Size
500 kcmil
Dimension - Outside Diameter inch
1.06 in
Dimension - Bolt Size inch
0.5
Description
Compression Lug, Barrel Size Standard, Color Code Brown, Die Code 20, 299, Tongue Angle Straight, Tongue Width 1.55 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 500 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, UL 467
