  11. One-Hole Compression Lug, 6 AWG Max, #10 Stud, Standard Barrel, Copper, None

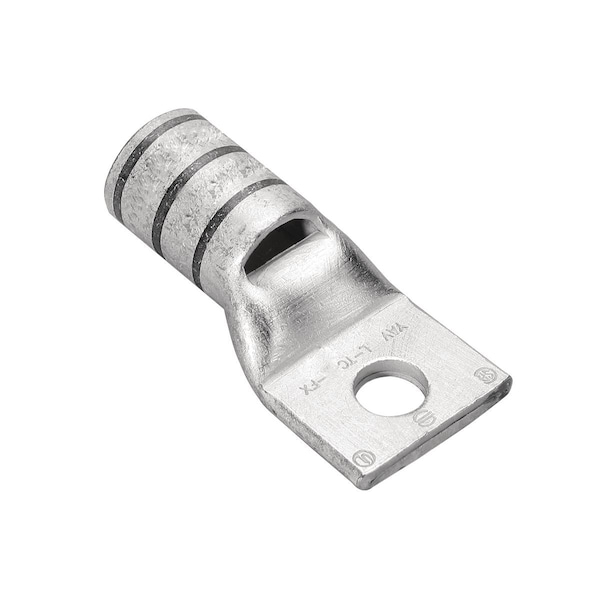

Burndy One-Hole Compression Lug, 6 AWG Max, #10 Stud, Standard Barrel, Copper, None YAV6CL1 - main

One-Hole Compression Lug, 6 AWG Max, #10 Stud, Standard Barrel, Copper, None

  • Mfr # YAV6CL1

  • Zoro # G805778316

product price: $1.35
/ea
Sold in multiples of 200 for $270.00

Key Features

Material
Copper
Color Code
None
Standards
UL486, Military Specified (Mil-Spec)
Die Code
39
Conductor - Copper Str Size Range
45082
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAV6CL1
Zoro #
G805778316
UPC #
-
Country of Origin
United States

Dimensions

Conductor - Copper Str Size Range
45082
Dimension - Stud Size inch
#10
Conductor - Copper Solid Size
10;9;8
Conductor - Copper Str Aircraft Size
AN 6
Dimension - Hole Size mm
5 mm
Dimension - Bolt Hole Size inch
0.2 in
Dimension - Length Overall inch
1.31 in
Dimension - Strip Length inch
1 to 2
Dimension - B Length inch
0.467 in
Dimension - N inch
0.24 in
Dimension - Pad Width inch
0.48 in
Dimension - Z inch
0.29 in
Dimension - Outside Diameter inch
0.31 in
Conductor - Copper Str Size
6;5
Conductor Size
6 AWG
Dimension - Bolt Size fraction
#10
Tongue Width
0.48 in
Barrel Size
Standard
For Wire Size
6 AWG
For Stud Size
#10

Details

Material
Copper
Color Code
None
Standards
UL486, Military Specified (Mil-Spec)
Die Code
39
Item
One-Hole Compression Lug
Feature - Barrel Type
Standard
Plating Type
Tin
Feature - Barrel Style
Chamfered
Physical Attribute - Number of Holes
1
Plated
Y
Application
For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance
Die Index
39
Physical Attribute - Tongue Type
Ring
Physical Attribute - Tongue Angle
Straight
Type
Ring Tongue
Certification - CSA Approved
Yes
Trade Name
HYLUGâ„¢
Material Composition
DLP CopperTin Plating
Industry Standard(s)
UL467Military Specified (Mil-Spec)
UL Listed
Yes
Conductor Type
CU C Solid-SizeCU C Str-Size
Number of Holes
1
Tongue Angle
Straight
For Conductor Material
Copper

Description

Tin Plated

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
