  11. One-Hole Compression Lug, 6 AWG Max, 5/16 in Stud, Long Barrel, Copper, None, 10 PK

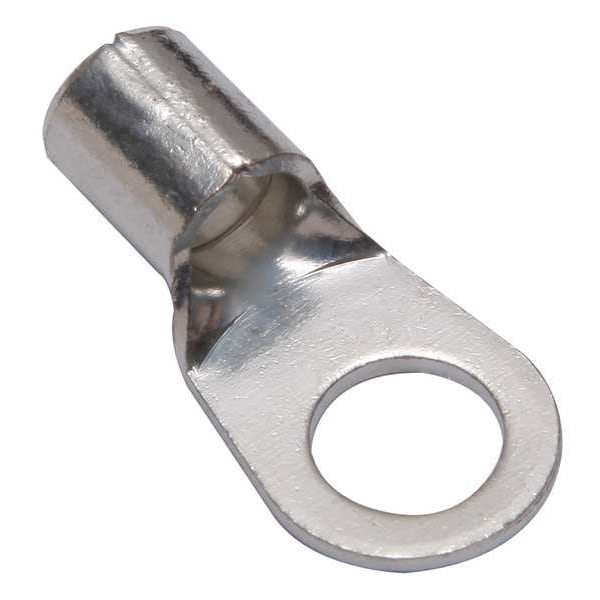

Burndy One-Hole Compression Lug, 6 AWG Max, 5/16 in Stud, Long Barrel, Copper, None, 10 PK YAD6CM8E516 - main

CAD Viewer & Download Files

One-Hole Compression Lug, 6 AWG Max, 5/16 in Stud, Long Barrel, Copper, None, 10 PK

  • Mfr # YAD6CM8E516

  • Zoro # G6124465

CAD Available
product price: $13.95
/pk 10, $1.40/ea

Key Features

CAD Drawing
For Wire Size
6 AWG
For Conductor Material
Copper
For Stud Size
5/16 in
Material
Copper
Barrel Size
Long
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD6CM8E516
Zoro #
G6124465
UPC #
781810668702
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
6 AWG
For Stud Size
5/16 in
Barrel Size
Long
Tongue Width
0.55 in
Cable Size
6 AWG
Width
0.55"
Barrel Length
0.4 in
Overall Length
1.14 in
Tongue Width - Wire Connector
0.55 in
Length
1.14"
Minimum Wire Size
6 AWG
Strip Length
1/2 in
Tongue Length
0.74 in
Tongue Thickness
0.05 in
Maximum Wire Size
6 AWG
Hole Diameter
0.33 in
Barrel Outside Diameter
0.32 in
Conductor - Copper Str Size
6 AWG
Dimension - Stud Size inch
45062
Dimension - Pad Width inch
0.55 in
Conductor Size
6 AWG
Dimension - Length Overall inch
1.14 in
Dimension - Hole Size inch
0.33 in
Dimension - Strip Length inch
45123
Dimension - L Length Overall mm
29 mm
Dimension - B Length inch
0.40 in
Dimension - Bolt Size fraction
2023-05-16
Dimension - Outside Diameter inch
0.32 in

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Color Code
None
Standards
UL 467
Peep Hole
No
Tongue Style
Ring
Hole Center to End
0.870"
Wire Range
6 AWG
Connection Material
Tin Plater Copper
Plate Material
Tin
Insulation Type
Non-Insulated
Connector Type
YAD
Seam
Brazed
Max. Voltage
600 V
Insulation Color
Bare
Max. Temp.
302 Degrees F
Terminal Shape
Ring Tongue
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Seam Style
Brazed
Maximum Voltage
600 V
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Compatible with Product Type
Code, Flex Cable
RoHS Compliant
No
Termination Style
Crimp
Barrel Style
Brazed
Compatible Manufacturer Model Number
Y1MRTC
Insulation Coverage
None
Hole Spacing
0.47 in
Contact Finish
Tin
Maximum Operating Temperature
302 Degrees F
Insulation Material
None
Contact Material
Copper
Minimum Operating Temperature
302 Degrees F
Trade Name
HYLUGâ„¢
Plating Type
Tin
Physical Attribute - Tongue Type
Ring
Item Type
3B
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Plated
Y
Industry Standard(s)
UL467
Conductor Type
CU C Str-SizeCU C Flex-Size
Type
Ring Tongue
Voltage - Maximum
600 V
Feature - Barrel Type
Long
CAD Available
Yes

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 6 AWG, Maximum Wire Size 6 AWG, Termination Style Crimp, Tongue Width 0.55 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.4 in, Barrel Outside Diameter 0.32 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P158, 22P219, 22P221
