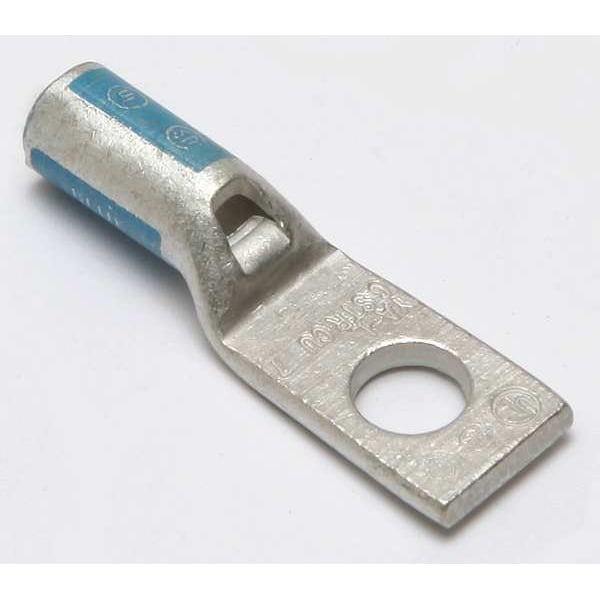

One-Hole Compression Lug, 6 AWG Max, #8, #10 Stud, Standard Barrel, Copper, Blue

Mfr # YA6CL1BOX
Zoro # G4681975

Key Features

For Wire Size

6 AWG

For Conductor Material

Copper

For Stud Size

#8, #10

Material

Copper

Barrel Size

Standard

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: YA6CL1BOX
Zoro #: G4681975
UPC #: 781810555446
Country of Origin: United States

Dimensions

For Wire Size: 6 AWG
For Stud Size: #8, #10
Barrel Size: Standard
Tongue Width: 0.41 in
Cable Size: 6 AWG
Width: 0.41"
Barrel Length: Short
Length: 1.27"
Overall Length: 1.27 in
Overall Width: 0.41 in
Length (Straight Wireway): 1.27 in
Tongue Thickness: 0.09 in
Strip Length: 9/16 in
For Stranded Copper Wire Size - Maximum: 6 AWG
Tongue Length: 0.45 in
Barrel Outside Diameter: 0.29 in
For Stranded Copper Wire Size - Minimum: 6 AWG
Hole Size: 0.2 in
Dimension - N inch: 0.22 in
Dimension - Outside Diameter inch: 0.29 in
Dimension - Length Overall inch: 1.27 in
Dimension - Stud Size fraction: #8;#10
Dimension - B Length inch: 0.54 in
Conductor - Copper Str Size Range: 6 AWG
Dimension - Bolt Size inch: 0.21
Conductor - Copper Str Size: 6 AWG
Dimension - Z inch: 0.23 in
Conductor Size: 6 AWG
Dimension - Hole Size inch: 0.20 in
Dimension - L Length Overall mm: 32 mm
Dimension - Strip Length inch: 9/16 in
Dimension - Hole Size mm: 5 mm
Conductor - Copper Solid Size: 6 AWG
Dimension - Pad Width inch: 0.41 in
Dimension - B Length fraction: 9/16 in
Dimension - Bolt Size fraction: #8-#10
Dimension - Hole Size fraction: #8-#10
Dimension - Stud Size inch: #8;#10
Wire Rope Length: 1.27 in

Details

Item: One-Hole Compression Lug
For Conductor Material: Copper
Material: Copper
Tongue Angle: Straight
Inspection Hole: Yes
Die Code: 7, 374
Color Code: Blue
Standards: CSA Certified, UL 486A-486B, UL Listed
Tongue Style: Standard
Hole Center to End: 0.22 in
Plate Material: Electro Tin
Peep Hole: Yes
Connector Type: Standard Barrel
Application: For Code Conductor
Barrel Style: Chamfered, Skived
RoHS Compliant: Yes
For Wire Type: Stranded
Special Features: Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements, Un-Insulated Compression Narrow Tongue Terminal, Up to 35 Kv
Contact Finish: Tin
Maximum Voltage: 35 kV
Termination Style: Crimp
Maximum Operating Temperature: 194 Degrees F
Finish Type: Tin-Plated
Die Index: 7;374
Physical Attribute - Number of Holes: 1
Conductor Type: CODE
Plated: Y
Feature - Barrel Type: Standard
Type: Standard Barrel, Tin Plated
Physical Attribute - Tongue Angle: Straight
Feature - Barrel Style: ChamferedSkived
Rating - Minimum Voltage: 600
Industry Standard(s): UL 486A-486B
UL Listed: Yes
Rating - KVA: 35 kV
Voltage - Maximum: 35000
Voltage Rating: 35 kV
Trade Name: HYLUGâ„¢
Conductor - Material: Copper
Plating Type: Tin - Electro Plated
Certification - CSA Approved: Yes
Physical Attribute - Tongue Type: Standard
Number of Holes: 1

Description

Compression Lug, Barrel Size Standard, Color Code Blue, Die Code 374, 7, Tongue Angle Straight, Tongue Width 0.41 in, For Conductor Material Copper, For Stud Size #10, #8, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
