  11. One-Hole Compression Lug, 8 AWG Max, 3/8 in Stud, Long Barrel, Copper, None, 10 PK

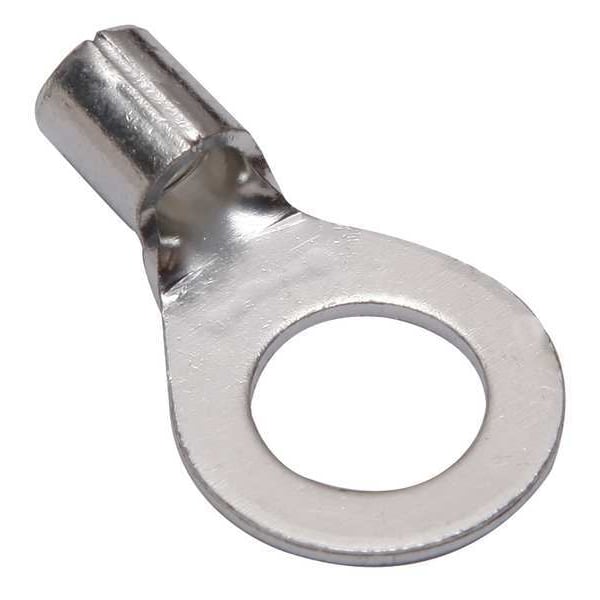

Burndy One-Hole Compression Lug, 8 AWG Max, 3/8 in Stud, Long Barrel, Copper, None, 10 PK YAD8CM10E38 - main

One-Hole Compression Lug, 8 AWG Max, 3/8 in Stud, Long Barrel, Copper, None, 10 PK

  • Mfr # YAD8CM10E38

  • Zoro # G6065157

product price: $8.55
/pk 10, $0.86/ea

Key Features

For Wire Size
8 AWG
For Conductor Material
Copper
For Stud Size
3/8 in
Material
Copper
Barrel Size
Long
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD8CM10E38
Zoro #
G6065157
UPC #
781810668719
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
8 AWG
For Stud Size
3/8 in
Barrel Size
Long
Tongue Width
0.71 in
Overall Length
1.18 in
Tongue Width - Wire Connector
0.71 in
Length
1.18"
Barrel Length
0.31 in
Cable Size
8 AWG
Width
0.71"
Tongue Length
0.87 in
Barrel Outside Diameter
0.26 in
Strip Length
3/8 in
Minimum Wire Size
8 AWG
Hole Diameter
0.41 in
Tongue Thickness
0.04 in
Maximum Wire Size
8 AWG
Dimension - Bolt Size fraction
2023-03-08
Dimension - Outside Diameter inch
0.26 in
Dimension - L Length Overall mm
30 mm
Dimension - Hole Size inch
0.41 in
Conductor Size
8 AWG
Dimension - B Length inch
0.31 in
Dimension - Length Overall inch
1.18 in
Dimension - Stud Size inch
44993
Dimension - Pad Width inch
0.71 in
Conductor - Copper Str Size
8 AWG
Dimension - Strip Length inch
44993

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Inspection Hole
No
Die Code
1013
Color Code
None
Standards
UL 467
Max. Voltage
600 V
Insulation Color
Bare
Hole Center to End
0.830"
Connection Material
Tin Plater Copper
Peep Hole
No
Connector Type
YAD
Plate Material
Tin
Seam
Brazed
Wire Range
8 AWG
Insulation Type
Non-Insulated
Max. Temp.
302 Degrees F
Tongue Style
Ring
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Hole Spacing
0.52 in
Maximum Operating Temperature
302 Degrees F
RoHS Compliant
No
Contact Material
Copper
Seam Style
Brazed
Termination Style
Crimp
Maximum Voltage
600 V
Insulation Material
None
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Compatible Manufacturer Model Number
Y1MRTC, Y8MRB-1
Contact Finish
Tin
Compatible with Product Type
Code, Flex Cable
Insulation Coverage
None
Barrel Style
Brazed
Minimum Operating Temperature
302 Degrees F
Terminal Shape
Ring Tongue
Voltage - Maximum
600 V
Plated
Y
Trade Name
HYLUGâ„¢
Industry Standard(s)
UL467
Physical Attribute - Tongue Type
Ring
Plating Type
Tin
Item Type
3B
Feature - Barrel Type
Long
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Type
Ring Tongue
Conductor Type
CU C Str-SizeCU C Flex-Size

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 8 AWG, Maximum Wire Size 8 AWG, Termination Style Crimp, Tongue Width 0.71 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.31 in, Barrel Outside Diameter 0.26 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P158, 22P219, 22P221
