  11. One-Hole Compression Lug, 8 AWG Max, 5/8 in Stud, Long Barrel, Copper, None, 10 PK

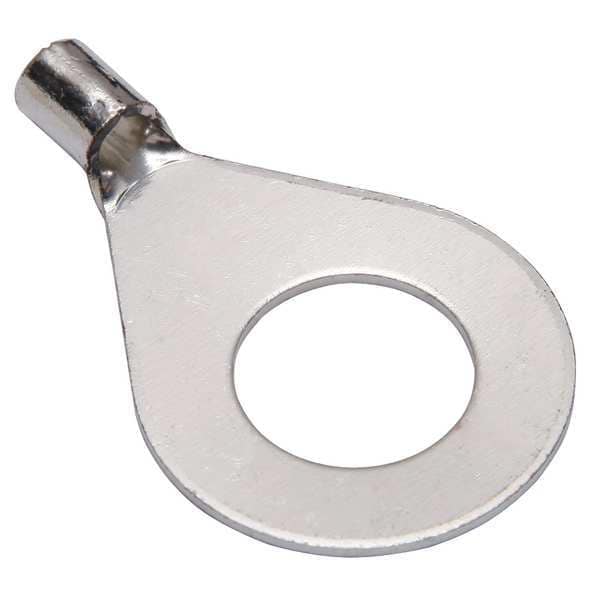

Burndy One-Hole Compression Lug, 8 AWG Max, 5/8 in Stud, Long Barrel, Copper, None, 10 PK YAD8CM16E58 - main

One-Hole Compression Lug, 8 AWG Max, 5/8 in Stud, Long Barrel, Copper, None, 10 PK

  • Mfr # YAD8CM16E58

  • Zoro # G6182127

product price: $34.49
/pk 10, $3.45/ea

Key Features

Cable Size
8 AWG
Connector Type
YAD
Width
1.1"
Material
Copper
Length
1.93"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD8CM16E58
Zoro #
G6182127
UPC #
781810668733
Country of Origin
Taiwan, Province of China

Dimensions

Cable Size
8 AWG
Width
1.1"
Length
1.93"
Barrel Length
0.31 in
Overall Length
1.93 in
Tongue Width - Wire Connector
1.1 in
Tongue Length
1.62 in
Strip Length
3/8 in
Maximum Wire Size
8 AWG
Hole Diameter
0.67 in
Minimum Wire Size
8 AWG
For Wire Size
8 AWG
Tongue Thickness
0.04 in
Barrel Outside Diameter
0.26 in
Tongue Width
1.10 in
Barrel Size
Long
Dimension - B Length inch
0.31 in
Dimension - Stud Size inch
45054
Dimension - Length Overall inch
1.93 in
Conductor Size
8 AWG
Dimension - Pad Width inch
1.10 in
Dimension - Bolt Size fraction
2023-05-08
Dimension - Strip Length inch
44993
Dimension - Outside Diameter inch
0.26 in
Dimension - Hole Size inch
0.67 in
Dimension - L Length Overall mm
49 mm
Conductor - Copper Str Size
8 AWG
For Stud Size
5/8 in

Details

Connector Type
YAD
Material
Copper
Color Code
None
Connection Material
Tin Plater Copper
Max. Voltage
600 V
Peep Hole
No
Plate Material
Tin
Item
One-Hole Compression Lug
Wire Range
8 AWG
Insulation Color
Bare
Insulation Type
Non-Insulated
Hole Center to End
1.380"
Die Code
1013
Max. Temp.
302 Degrees F
Tongue Style
Ring
Seam
Brazed
Standards
UL 467
Minimum Operating Temperature
302 Degrees F
Maximum Voltage
600 V
Compatible with Product Type
Code, Flex Cable
Compatible Manufacturer Model Number
Y1MRTC, Y8MRB-1
Contact Material
Copper
Insulation Material
None
Insulation Coverage
None
RoHS Compliant
No
Maximum Operating Temperature
302 Degrees F
Terminal Shape
Ring Tongue
Seam Style
Brazed
Contact Finish
Tin
Barrel Style
Brazed
Hole Spacing
1.37 in
Termination Style
Crimp
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Type
Ring Tongue
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Conductor Type
CU C Str-SizeCU C Flex-Size
Plated
Y
Plating Type
Tin
Item Type
3B
Industry Standard(s)
UL467
Voltage - Maximum
600 V
Physical Attribute - Tongue Type
Ring
Feature - Barrel Type
Long
Trade Name
HYLUGâ„¢
For Conductor Material
Copper
Number of Holes
1
Inspection Hole
No

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 8 AWG, Maximum Wire Size 8 AWG, Termination Style Crimp, Tongue Width 1.1 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.31 in, Barrel Outside Diameter 0.26 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P158, 22P219, 22P221
