  11. Pipe Ground Clamp, 14AWG, 2.25In, PK5

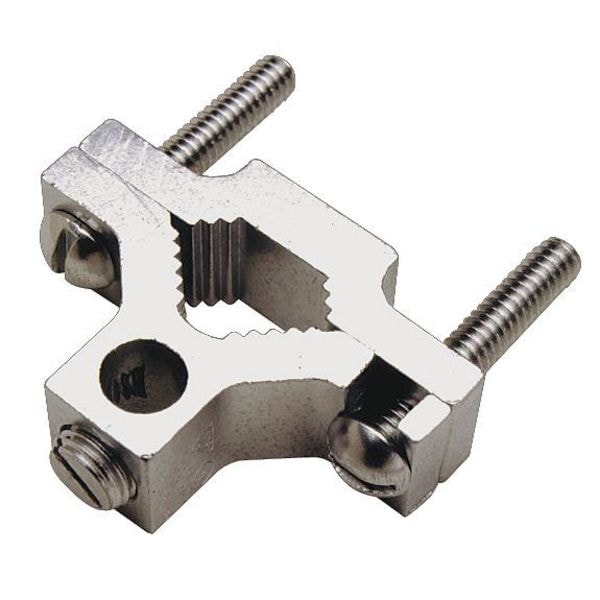

Burndy Pipe Ground Clamp, 14AWG, 2.25In, PK5 GC15A - main

Pipe Ground Clamp, 14AWG, 2.25In, PK5

  • Mfr # GC15A

  • Zoro # G4687846

product price: $32.84
/pk 5, $6.57/ea

Key Features

Item - Grounding Connector
Grounding Connector
Type
COMMERCIAL
Type - Grounding Connector
Mechanical
Wire Size - Grounding
14 to 1/0 AWG
Material
Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GC15A
Zoro #
G4687846
UPC #
781810240007
Country of Origin
United States

Dimensions

Wire Size - Grounding
14 to 1/0 AWG
Conductor Size
1/0 AWG to 14 AWG
Rod Dia.
1/2" to 1" Pipe
Grounding Wire Size
14 to 1/0 AWG SOL, 14 to 1/0 AWG STR, 8 to 4/0 AWG STR
For Maximum Pipe Size
1 in
Overall Length
2 1/4 in
For Maximum Ground Conductor Wire Size
1/0 AWG
For Minimum Ground Conductor Wire Size
14 AWG
For Minimum Pipe Size
1/2 in
Overall Width
11/16 in
Conductor - Copper Solid Size
14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG
Dimension - Width fraction
11/16 in
Dimension - Width mm
18 mm
Conductor - Copper Str Size
14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0
Conductor - AL Str Size
8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Dimension - Pad Width inch
0.69 in
Dimension - Hole Size inch
0.40 in
Dimension - Hole Size mm
10 mm
Dimension - L Length Overall mm
57 mm
Conductor - Copper Str Size Range
14 AWG-1/0
Dimension - Length Overall inch
2.25 in
Dimension - Width inch
0.69 in
Conductor - AL Str Size Range
8 AWG-4/0 AWG
Conductor - Copper Solid Size Range
14 AWG-1/0 AWG

Details

Item
Grounding Connector
Item - Grounding Connector
Grounding Connector
Type
COMMERCIAL
Type - Grounding Connector
Mechanical
Material
Aluminum
Grounding Wires Connected To
1/2 in to 1 in Pipe
Standards
UL Listed, UL467
Material - Grounding Connector
Aluminum
Number of Wires - Grounding
1
Material of Construction
Aluminum
Description/Special Features
Slotted Steel Screw
For Use With
Aluminum Conductor, Conduit, Copper Conductor, Pipe, Water Pipe
Torque
180 lb-in
Accessory Type
Grounding Connector
Application
For Use With Either Copper Or Aluminum Conductors To Copper Water Pipe, Galvanized Pipe Or Steel Conduit
Installation Torque Recommended in-lb
180 LBS/in
Temperature Rating
-0.4
Voltage - Maximum
600 V
Material Type - Screw
Steel
Conductor - Pipe or Round Tube Run Range
36893
Conductor Type
AL C Str-SizeCU C Solid-SizeCU C Str-SizePipe or Tube Round-Run
UL Listed
Yes
Industry Standard(s)
UL467
Plating Type
Tin
Standards - Industry Standards Met
UL467
Plated
Y
Physical Attribute - Screw Type
Slot
Conductor - Pipe or Round Tube Run
1/2 ;3/4 ;1

Description

Grounding Connector, Grounding Wire Size 14 to 1/0 AWG SOL, 14 to 1/0 AWG STR, 8 to 4/0 AWG STR, Material Aluminum, Number of Wires - Grounding 1, Description/Special Features Slotted Steel Screw, For Maximum Ground Conductor Wire Size 1/0 AWG, For Minimum Ground Conductor Wire Size 14 AWG, For Use With Aluminum Conductor, Conduit, Copper Conductor, Pipe, Water Pipe, Grounding Wires Connected To 1/2 in to 1 in Pipe, Standards UL Listed, UL467, Type - Grounding Connector Mechanical
