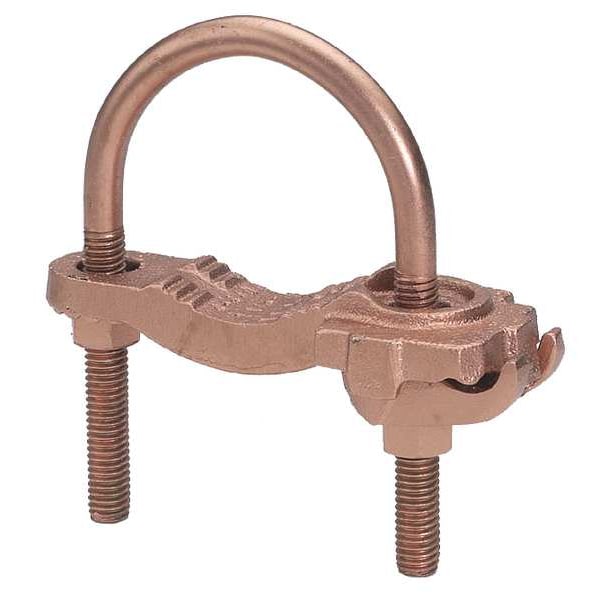

Pipe Ground Clamp, 4AWG, 8.62In
Mfr # GAR3906BU
Zoro # G4703991
product price: $519.99
/ea
Free Shipping & Returns
Key Features
Item - Grounding Connector
Grounding Connector
Type
COMMERCIAL
Type - Grounding Connector
Mechanical
Wire Size - Grounding
4 to 4/0 AWG
Material
Copper
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
GAR3906BU
Zoro #
G4703991
UPC #
781810001530
Country of Origin
Mexico
Dimensions
Wire Size - Grounding
4 to 4/0 AWG
Conductor Size
4/0 AWG to 4 AWG
Rod Dia.
1/2" to 1" Pipe
Grounding Wire Size
4 to 4/0 AWG SOL, 4 to 4/0 AWG STR
Overall Length
1 3/4 in
Overall Height
8 1/2 in
Overall Width
8 5/8 in
For Minimum Ground Conductor Wire Size
4 AWG
For Maximum Pipe Size
6 in
For Minimum Pipe Size
6 in
For Maximum Ground Conductor Wire Size
4/0 AWG
Dimension - Outside Diameter inch
6.62 in
Conductor - Copper Str Size
4;3;2;1;1/0;2/0;3/0;4/0
Conductor - Copper Str Size Range
36620
Conductor - Copper Tube Std Size Range
6
Conductor - Copper Solid Size Range
4 AWG - 4/0 AWG
Conductor - Pipe or Round Tube Size
6 in
Dimension - B Length inch
1.75 in
Dimension - Height inch
8.50 in
Dimension - Length Overall inch
1.75 in
Dimension - Width mm
219 mm
Dimension - Width inch
8.62 in
Conductor - Copper Tube Std Size
6
Description
Grounding Connector, Grounding Wire Size 4 to 4/0 AWG SOL, 4 to 4/0 AWG STR, Material Copper, Number of Wires - Grounding 1, Description/Special Features Direct Burial, For Maximum Ground Conductor Wire Size 4/0 AWG, For Minimum Ground Conductor Wire Size 4 AWG, For Use With Copper Conductor, Ground Rods, Pipes, Grounding Wires Connected To 6 in Pipe, Standards UL Listed Direct Burial, UL467, Type - Grounding Connector Mechanical, Accessory Type Ground Clamp, For Maximum Pipe Size 6 in
