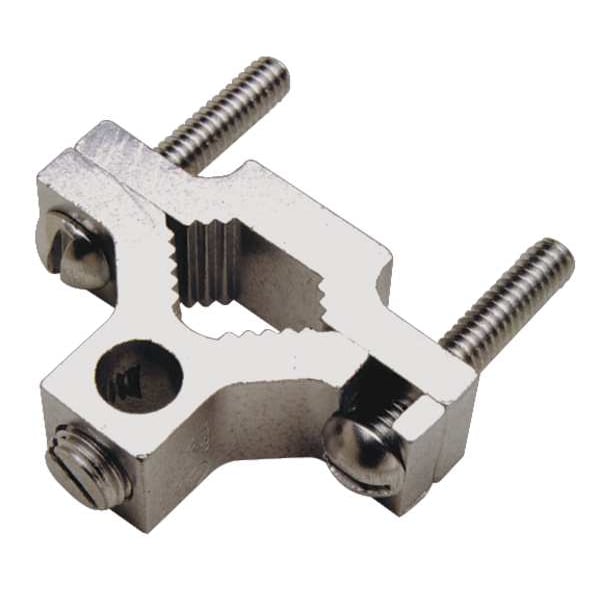

Pipe Ground Clamp, 6AWG, 6.31In
Mfr # GC22A
Zoro # G4685012
product price:Â
$
42.79
/ea
Key Features
Item - Grounding Connector
Grounding Connector
Type - Grounding Connector
Mechanical
Type
COMMERCIAL
Wire Size - Grounding
6 AWG to 250 kcmil
Material
Aluminum
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- GC22A
- Zoro #
- G4685012
- UPC #
- 781810240021
- Country of Origin
- United States
Dimensions
- Wire Size - Grounding
- 6 AWG to 250 kcmil
- Rod Dia.
- 2-1/2" to 4" Pipe
- Conductor Size
- 250 kcmil to 6 AWG
- Grounding Wire Size
- 6 AWG to 250 kcmil STR, 6 to 4/0 AWG SOL
- For Maximum Ground Conductor Wire Size
- 250 kcmil
- For Maximum Pipe Size
- 4 in
- Overall Length
- 6 5/16 in
- Overall Width
- 1 in
- For Minimum Pipe Size
- 2 1/2 in
- For Minimum Ground Conductor Wire Size
- 6 AWG
- Dimension - Pad Width inch
- 1.00 in
- Dimension - Hole Size mm
- 16 mm
- Conductor - Copper Str Size Range
- 6 AWG-250 kcmil
- Conductor - Copper Solid Size
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
- Hex Size
- 2023-05-16
- Dimension - Width fraction
- 1 in
- Dimension - Length Overall inch
- 6.31 in
- Dimension - Hole Size inch
- 0.62 in
- Conductor - AL Str Size
- 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Conductor - Copper Solid Size Range
- 6 AWG-4/0 AWG
- Dimension - Width inch
- 1.00 in
- Conductor - Copper Str Size
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Dimension - L Length Overall mm
- 160 mm
- Conductor - AL Str Size Range
- 6 AWG-250 kcmil
- Dimension - Width mm
- 25 mm
- Wire Rope Length
- 6 5/16 in
- Length
- 6 5/16 in
Description
Grounding Connector, Grounding Wire Size 6 AWG to 250 kcmil STR, 6 to 4/0 AWG SOL, Material Aluminum, Number of Wires - Grounding 1, Description/Special Features Hex Socket Steel Screw, For Maximum Ground Conductor Wire Size 250 kcmil, For Minimum Ground Conductor Wire Size 6 AWG, For Use With Aluminum Conductor, Conduit, Copper Conductor, Pipe, Water Pipe, Grounding Wires Connected To 2 1/2 in to 4 in Pipe, Standards UL Listed, UL467, Type - Grounding Connector Mechanical
