Shop All Mechanical Lugs
Burndy

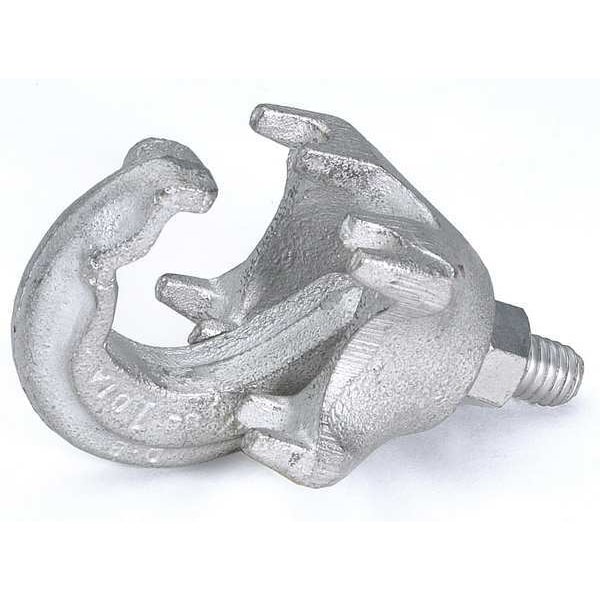

Raised Floor Ground, 8AWG, 3.14In
Mfr # GRF4C3
Zoro # G4690061
product price: $52.95
/ea
$52.95
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Material Copper
- Conductor Size 2 AWG to 8 AWG
- Grounding Wires Connected To Up to 1 in Round Raised Floor Pedestal, Up to 7/8 in Square Raised Floor Pedestal
- Material of Construction Copper Alloy
- Number of Wires - Grounding 2
Product Information
- Brand Burndy
- MFR # GRF4C3
- Zoro # G4690061
- UPC # 781810828021
- Country of Origin Mexico
- Category Mechanical Lugs
Dimensions
| Conductor Size | 2 AWG to 8 AWG |
| Wire Size - Grounding | 8 to 2 AWG |
| Grounding Wire Size | 8 to 2 AWG SOL, 8 to 2 AWG STR |
| For Maximum Ground Conductor Wire Size | 2 AWG |
| For Minimum Ground Conductor Wire Size | 8 AWG |
| Overall Width | 1 3/4 in |
| Overall Height | 3 1/8 in |
| For Minimum Pipe Size | 3/8 in, 1/2 in |
| Overall Length | 1 31/32 in |
| For Maximum Pipe Size | 1 in, 3 1/2 in |
Details
Description
Raised Floor Grounding Connector, Grounding Wire Size 8 to 2 AWG SOL, 8 to 2 AWG STR, Material Copper, Number of Wires - Grounding 2, Description/Special Features Raised Floor Pedestal, Single Bolt, For Maximum Ground Conductor Wire Size 2 AWG, For Minimum Ground Conductor Wire Size 8 AWG, For Use With Round or Square Raised Floor Pedestal, Grounding Wires Connected To Up to 1 in Round Raised Floor Pedestal, Up to 7/8 in Square Raised Floor Pedestal, Standards UL Listed, UL467
