  11. Ring Terminal, #8 Stud Size, 16 AWG, 600 V, Vinyl Insulated, Red, Crimp Termination Only

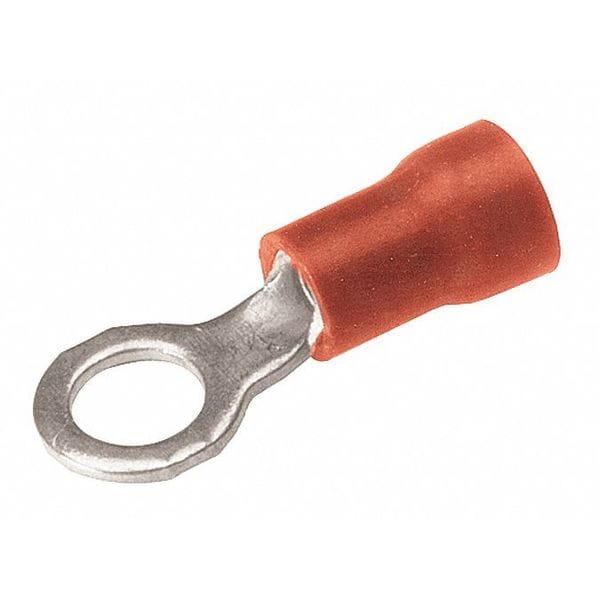

Burndy Ring Terminal, #8 Stud Size, 16 AWG, 600 V, Vinyl Insulated, Red, Crimp Termination Only TP168 - main

Ring Terminal, #8 Stud Size, 16 AWG, 600 V, Vinyl Insulated, Red, Crimp Termination Only

  • Mfr # TP168

  • Zoro # G4942870

product price: $89.59
/ea
Free Shipping & Returns

Key Features

Terminal Shape
Standard Ring Tongue
Termination Style
Crimp Termination Only
Insulation Color
Red
Minimum Wire Size
16 AWG
Insulation Type
Vinyl
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TP168
Zoro #
G4942870
UPC #
781810714645
Country of Origin
United States

Dimensions

Maximum Wire Size
16 AWG
Minimum Wire Size
16 AWG
Stud Size
#8
Overall Length
0.85 in
Cable Insulation Diameter Maximum
0.145 in

Details

Item
Ring Terminal
Terminal Shape
Standard Ring Tongue
Termination Style
Crimp Termination Only
Insulation Color
Red
Insulation Type
Vinyl
Contact Material
Copper
Maximum Voltage
600 V
Standards
CSA Certified; UL467; UL Listed
Wire Range
22 to 16 AWG
Max. Voltage
600V
Seam
Shrouded
Application
For Commercial And Light Duty Industrial Control And Power Circuit Applications
Insulation Dia
0.145 in
Certification - CSA Approved
Yes
Physical Attribute - Tongue Type
Ring
Physical Attribute - Number of Holes
1
Plating Type
Tin
Trade Name
VINYLUG™
Plated
Yes
Feature - Barrel Style
Shrouded
Conductor Type
CU C Str-SizeCU C Solid-Size

Description

Vinyl Ring Tongue Terminal,22-16AWG

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
