Shop All Split Bolt Connectors
Burndy

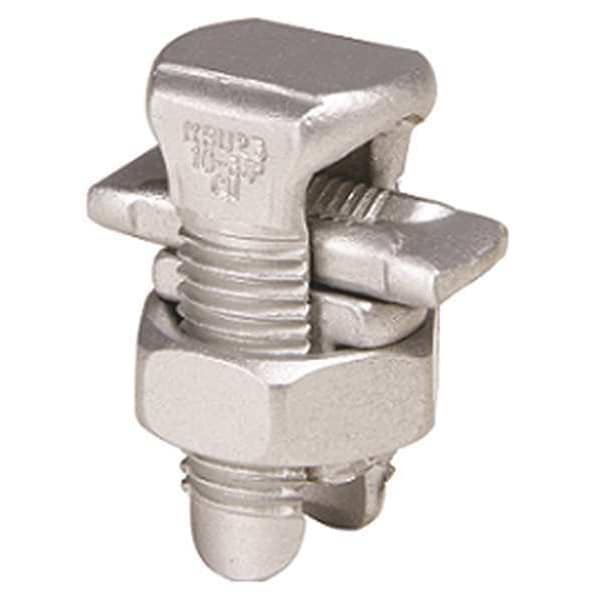

Split-Bolt Connector, 1 str to 250 kcmil

product price: $77.69
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connects Copper to Aluminum Wire
  • Wire Range w/Equal Main and Tap (AWG) 1 str to 250 kcmil
  • Min. Tap Conductor w/1 Max. Main (AWG) 8 str
  • Material Copper Alloy
  • Pressure Bar Material Copper
See all product information

Product Information

Dimensions

For Run Wire Size 1/0 AWG, 1 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG
For Maximum Tap Wire Size 250 kcmil
For Maximum Run Wire Size 250 kcmil
Overall Width 1.14 in
For Minimum Run Wire Size 1 AWG
Overall Length 2.66 in
For Minimum Tap Wire Size 8 AWG

Details

Item Split-Bolt Connector
Connects Copper to Aluminum Wire
Wire Range w/Equal Main and Tap (AWG) 1 str to 250 kcmil
Min. Tap Conductor w/1 Max. Main (AWG) 8 str
Material Copper Alloy
Pressure Bar Material Copper
Standards CSA Certified, UL Listed 486A Copper Only
Head Style Square Head
Torque 650 in-lb
Body Finish Tin Plated
Minimum Tap Conductor w/1 Maximum Main (AWG) 8 str
For Conductor Material Aluminum, Copper, Steel
Maximum Voltage 35,000 V
Special Features High Strength Copper Alloy SERVIT With Spacer, Spacer Separates Dissimilar Conductors And Provides Long Contact Length That Prevents High Pressure Point Contacts Between Run And Tap Conductors
Body Material Copper

Description

Split-Bolt Connector, Body Finish Tin Plated, Body Material Copper, For Conductor Material Aluminum, Copper, Steel, For Minimum Run Wire Size 1 AWG, For Maximum Run Wire Size 250 kcmil, For Minimum Tap Wire Size 8 AWG, For Maximum Tap Wire Size 250 kcmil, Head Style Square Head, Maximum Voltage 35,000 V, Torque 650 in-lb, Overall Length 2.66 in, Overall Width 1.14 in, Standards CSA Certified, UL Listed 486A Copper Only, Connects Copper to Aluminum Wire
