- MFR #
- KSU22
- Zoro #
- G4673444
- UPC #
- 781810557907
- Country of Origin
- United States
- Item

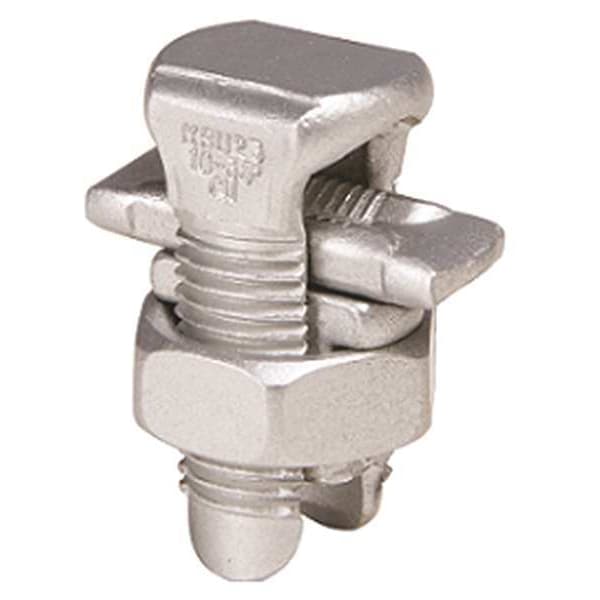

- Split-Bolt Connector
- Connects
- Copper to Aluminum Wire
- Wire Range w/Equal Main and Tap (AWG)
- 10 sol to 2 sol
- Min. Tap Conductor w/1 Max. Main (AWG)
- 10 sol
- Material
- Copper Alloy
- Pressure Bar Material
- Copper
- Standards
- CSA Certified, UL Listed 486A Copper Only
- Head Style
- Square Head
- RoHS Compliant
- Yes
- Special Features
- High Strength Copper Alloy SERVIT With Spacer, Spacer Separates Dissimilar Conductors And Provides Long Contact Length That Prevents High Pressure Point Contacts Between Run And Tap Conductors
- Body Finish
- Tin Plated
- Minimum Tap Conductor w/1 Maximum Main (AWG)
- 10 AWG sol
- Compatible Manufacturer Model Number
- SC2
- Compatible with Series
- Servit
- Maximum Voltage
- 35 kV
- Compatible with Product Type
- Split Bolt Covers
- For Conductor Material
- Aluminum, Copper, Steel
- Torque
- 275 in-lb
- Body Material
- Copper
- Trade Name
- SERVIT®
- Conductor - AAAC 6201 Run
- 30.58 (7) kcmil;48.69 (7) kcmil
- Conductor - ACSR Str Run
- 6 (6/1) Turkey AWG;5 (6/1) Thrush AWG;4 (6/1) Swan AWG;4 (7/1) Swanate AWG
- Conductor Type
- CU C Solid-RunCU C Str-RunAL C Str-RunAAAC C 5005-RunAAAC C 6201-RunACSR C Str-RunCU C Solid-TapCU C Str-TapAL C Str-TapAAAC C 5005-TapAAAC C 6201-TapACSR C Str-TapGAL Steel C Str-Size
- Conductor - Copper Str Run Range
- 10 STR. - 2 SOL.
- Conductor - Copper Solid Run
- 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Type
- KSU, Universal
- Plated
- Yes
- Conductor - AAAC 5005 Run Range
- 30.58 (7) kcmil-48.69 (7) kcmil
- Conductor - AAAC 5005 Run
- 30.58 (7) kcmil;48.69 (7) kcmil
- Conductor - Copper Str Tap
- 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Conductor - AAAC 6201 Tap Range
- 30.58 (7) kcmil-48.69 (7) kcmil
- Conductor - Copper Str Tap Range
- 10 STR. - 2 SOL.
- Conductor - AAAC 5005 Tap Range
- 30.58 (7) kcmil-48.69 (7) kcmil
- Conductor - Copper Solid Tap Range
- 10 AWG-2 AWG
- Conductor - AL Str Run
- 10 AWG;8 AWG;6 AWG;4 AWG;3 AWG;2 AWG
- Conductor - Copper Solid Run Range
- 10 AWG-2 AWG
- Conductor - ACSR Str Tap Range
- 6 AWG - 4 AWG
- Conductor - ACSR Str Tap
- 6 (6/1) Turkey AWG;5 (6/1) Thrush AWG;4 (6/1) Swan AWG;4 (7/1) Swanate AWG
- Connector Type
- Split Bolt
- Installation Torque Recommended in-lb
- 275
- UL Listed
- Yes
- Conductor - AL Str Tap Range
- 10 STR. - 2 SOL.
- Conductor - ACSR Str Run Range
- 6 AWG - 4 AWG
- Application
- For All Combinations Of Copper, Aluminum, ACSR, AAAC, 5005, And Steel
- Conductor - AAAC 6201 Run Range
- 30.58 (7) kcmil-48.69 (7) kcmil
- Conductor - Copper Solid Tap
- 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Plating Type
- Tin Plated
- Conductor - AAAC 6201 Tap
- 30.58 (7) kcmil;48.69 (7) kcmil
- Conductor - AAAC 5005 Tap
- 30.58 (7) kcmil;48.69 (7) kcmil
- Conductor - Copper Str Run
- 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Conductor - AL Str Run Range
- 10 STR. - 2 SOL.
- Conductor - AL Str Tap
- 10 AWG;8 AWG;6 AWG;4 AWG;3 AWG;2 AWG
- Series
- Servit
