  11. Split-Bolt Connector, 2 str to 2/0 str

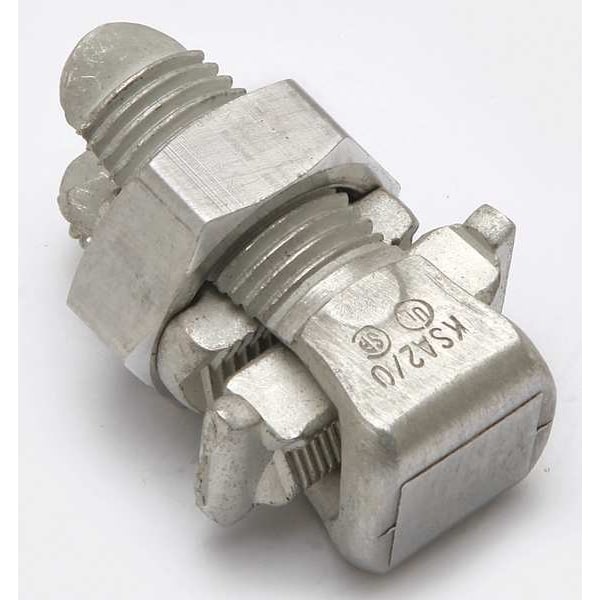

Burndy Split-Bolt Connector, 2 str to 2/0 str KSA2/0 - main

Split-Bolt Connector, 2 str to 2/0 str

  • Mfr # KSA2/0

  • Zoro # G4649373

product price: $24.99
/ea

Key Features

Connects
Copper to Aluminum Wire
Wire Range w/Equal Main and Tap (AWG)
2 str to 2/0 str
Min. Tap Conductor w/1 Max. Main (AWG)
8 str
Material
Tin-Plated Aluminum
Pressure Bar Material
Copper
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KSA2/0
Zoro #
G4649373
UPC #
781810559031
Country of Origin
United States

Dimensions

Overall Length
1.92 in
Conductor Size
8-2/0 AWG
For Maximum Run Wire Size
2/0 AWG
For Minimum Run Wire Size
2 AWG
For Minimum Tap Wire Size
8 AWG
Overall Width
0.88 in
For Maximum Tap Wire Size
2/0 AWG
Hex Nut Size
1.12 in
Dimension - B Length fraction
1-4/9 in
Dimension - B Length inch
1.92 in
Dimension - Height inch
0.90 in
Dimension - Bolt Size inch
0.88 in
Dimension - Height fraction
8/9 in
Dimension - L Length Overall mm
49 mm
Dimension - Cross Flats inch
1.12 in
Dimension - Width mm
22 mm
Dimension - Width inch
0.88 in
Dimension - Length Overall inch
1.92 in

Details

Item
Split-Bolt Connector
Connects
Copper to Aluminum Wire
Wire Range w/Equal Main and Tap (AWG)
2 str to 2/0 str
Min. Tap Conductor w/1 Max. Main (AWG)
8 str
Material
Tin-Plated Aluminum
Pressure Bar Material
Copper
Standards
CSA Certified, UL 468A, UL 486B, UL 486D
Head Style
Square Head
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Special Features
Facilitates Piercing The Aluminum Conductor Surface Oxides, No Scratch Brushing Required, No Oxide Inhibitor Required, Orients The Conductor, Provides Maximum Pressure And Assures A Secure Connection Of Run And Tap Conductors
Torque
385 in-lb
Maximum Voltage
35,000 V
Minimum Tap Conductor w/1 Maximum Main (AWG)
8 AWG str
Body Finish
Tin Plated
RoHS Compliant
Yes
Maximum Operating Temperature
194 Degrees F
Type
KSA
Certification - CSA Approved
Yes
Standards - Industry Standards Met
UL468A-468B
Connector Type
Split Bolt
Conductor - Copper Str Run Range
2 AWG-2/0 AWG
UL Listed
Yes
Trade Name
TRITAP™ SERVIT®
Conductor - Copper Solid Tap Range
8 AWG-2/0 AWG
Conductor - Copper Str Tap
8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
Conductor - AL Str Tap
8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG
Installation Torque Recommended in-lb
385 LBS/in
Conductor - AL Str Run
2 AWG;1 AWG;1/0 AWG;2/0 AWG
Plating Type
Tin
Plated
Yes
Conductor - AL Str Tap Range
8 AWG-2/0 AWG
Conductor - Copper Str Tap Range
8 AWG-2/0 AWG
Application
For All Combinations of Aluminum to Aluminum, Aluminum to Copper and Copper to Copper, Aluminum Alloy Tin Plated
Conductor Type
AL C Str-RunCU C Str-RunCU C Solid-RunAL C Str-TapCU C Str-TapCU C Solid-Tap
Rating - Minimum Voltage
600
Hardware Type
7/8-14 UNF
Temperature Rating
194
Conductor - Copper Str Run
2 AWG;1 AWG;1/0 ;2/0 AWG
Industry Standard(s)
UL468A-468B
Conductor - AL Str Run Range
2 AWG-2/0 AWG
Conductor - Copper Solid Tap
8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG

Description

Split-Bolt Connector, Body Finish Tin Plated, Body Material Aluminum, For Conductor Material Aluminum, Copper, For Minimum Run Wire Size 2 AWG, For Maximum Run Wire Size 2/0 AWG, For Minimum Tap Wire Size 8 AWG, For Maximum Tap Wire Size 2/0 AWG, Head Style Square Head, Hex Nut Size 1.12 in, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Torque 385 in-lb, Overall Length 1.92 in, Overall Width 0.88 in, RoHS Compliant Yes, Standards CSA Certified, UL 468A, UL 486B, UL 486D
