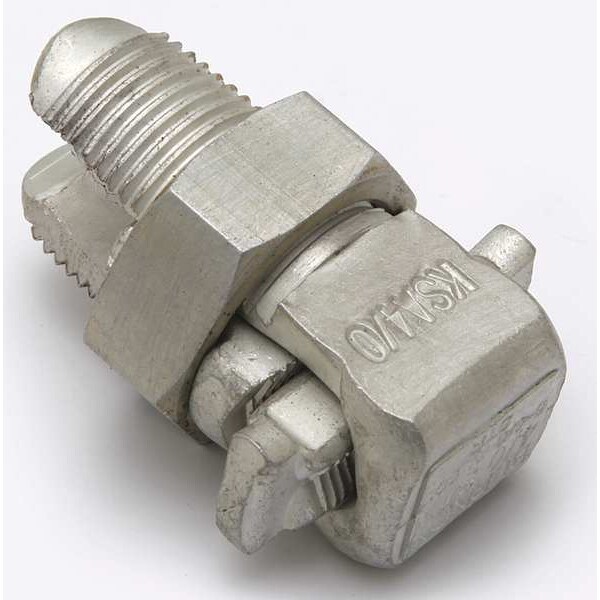

Split-Bolt Connector, 6 str
Mfr # KSA4/0
Zoro # G4694882
product price: $42.19
/eaKey Features
Connects
Copper to Aluminum Wire
Wire Range w/Equal Main and Tap (AWG)
4/0 str to 4/0 str
Min. Tap Conductor w/1 Max. Main (AWG)
6 str
Material
Tin-Plated Aluminum
Pressure Bar Material
Copper
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KSA4/0
Zoro #
G4694882
UPC #
781810559024
Country of Origin
United States
Dimensions
For Maximum Run Wire Size
4/0 AWG
Overall Width
1.13 in
For Maximum Tap Wire Size
4/0 AWG
For Minimum Tap Wire Size
4 AWG, 6 AWG
Overall Length
2.52 in
Hex Nut Size
1.49 in
For Minimum Run Wire Size
2 AWG
Conductor Size
6-4/0 AWG
Dimension - Height inch
1.17 in
Dimension - B Length fraction
1-8/9 in
Dimension - L Length Overall mm
65 mm
Dimension - Bolt Size inch
1.19 in
Dimension - Width inch
1.13 in
Dimension - B Length inch
1.90 in
Dimension - Length Overall inch
2.52 in
Dimension - Height fraction
1-1/3 in
Dimension - Cross Flats inch
1.49 in
Description
Split-Bolt Connector, Body Finish Tin Plated, Body Material Aluminum, For Conductor Material Aluminum, Copper, For Minimum Run Wire Size 2 AWG, For Maximum Run Wire Size 4/0 AWG, For Minimum Tap Wire Size 4 AWG, 6 AWG, For Maximum Tap Wire Size 4/0 AWG, Head Style Square Head, Hex Nut Size 1.49 in, Maximum Temperature 194 Degrees F, Maximum Voltage 35 kV, Torque 500 in-lb, Overall Length 2.52 in, Overall Width 1.13 in, RoHS Compliant Yes, Standards CSA Certified, UL 468A, UL 486B, UL 486D
