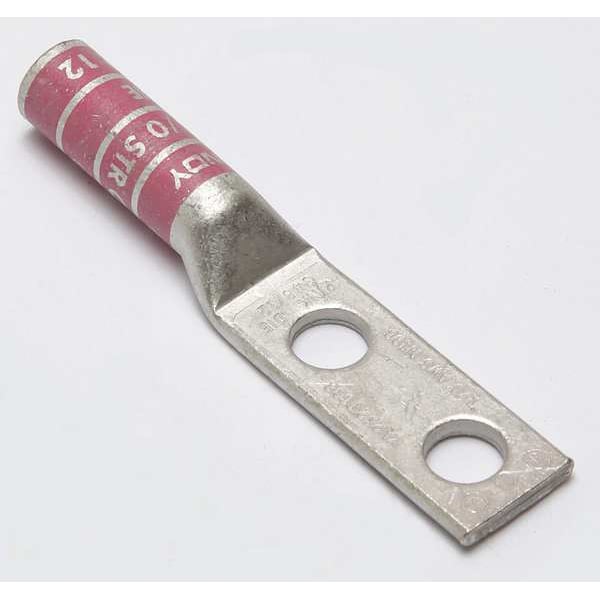

Two-Hole Compression Lug, 1/0 AWG Max, 3/8 in Stud, Long Barrel, Copper, Pink

  • Mfr # YA252TC38

  • Zoro # G4655016

product price:  $13.69
/ea

Key Features

For Wire Size
1/0 AWG
For Conductor Material
Copper
For Stud Size
3/8 in
Material
Copper
Barrel Size
Long
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
YA252TC38
Zoro #
G4655016
UPC #
781810555828
Country of Origin
United States

Dimensions

For Wire Size
1/0 AWG
For Stud Size
3/8 in
Barrel Size
Long
Tongue Width
0.75 in
Cable Size
1/0 AWG
Width
3/4"
Length
3.62"
Barrel Length
Long
Overall Length
3.62 in
Overall Width
0.75 in
Length (Straight Wireway)
3.62 in
For Stranded Copper Wire Size - Minimum
1/0 AWG
Hole Size
0.4 in
For Stranded Copper Wire Size - Maximum
1/0 AWG
Tongue Length
0.84 in
Tongue Thickness
0.12 in
Strip Length
1 7/16 in
Barrel Outside Diameter
0.51 in
Conductor - Copper Str Size
36526
Conductor Size
1/0 AWG
Dimension - L Length Overall mm
92 mm
Conductor - Copper Str Navy Size Range
100 (61) Navy
Dimension - Pad Width inch
0.75 in
Dimension - Stud Size inch
44993
Dimension - Thread Size
44993
Dimension - Bolt Size fraction
44993
Dimension - Outside Diameter inch
0.51 in
Dimension - Length Overall inch
3.62 in
Dimension - Stud Size fraction
2023-03-08
Conductor - Copper Str Size Range
36526
Dimension - D inch
1.84 in
Dimension - Hole Size inch
0.40 in
Conductor - Copper Solid Size
1/0 AWG
Conductor - Copper Str Navy Size
100 (61) Navy
Dimension - Hole Size mm
10 mm
Dimension - B Length inch
1.38 in
Dimension - N inch
0.41 in
Dimension - Bolt Hole Size inch
0.39 in
Dimension - Strip Length inch
42376
Dimension - Hole Size fraction
2023-03-08
Conductor - Copper Solid Size Range
1/0 AWG
Dimension - Bolt Size inch
0.38
Dimension - B Length fraction
1-3/8 in
Dimension - Z inch
0.43 in

Details

Item
Two-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Inspection Hole
No
Die Code
12, 348
Color Code
Pink
Standards
CSA Certified, UL 486A-486B, UL Listed
Connector Type
Long Barrel
Tongue Style
Standard
Hole Center to Center
1 in
Hole Center to End
0.41 in
Peep Hole
No
Lug Compression Connector Type
Two-Hole Lug Compression Connector
Plate Material
Electro Tin
Application
For Code Conductor
RoHS Compliant
Yes
Maximum Voltage
35 kV
Contact Finish
Tin
Barrel Style
Chamfered
Termination Style
Crimp
Maximum Operating Temperature
194 Degrees F
Special Features
Corrosion Resistant, Non-Insulated Construction
For Wire Type
Stranded
Plated
Y
UL Listed
Yes
Plating Type
Tin - Electro Plated
Certification - CSA Approved
Yes
Industry Standard(s)
UL468A-468B
Trade Name
HYLUGâ„¢
Physical Attribute - Tongue Type
Standard
Type
Long Barrel, Tin Plated
Feature - Barrel Style
Chamfered
Conductor - Material
Copper
Temperature Rating
194
Voltage - Maximum
35000
Feature - Barrel Type
Long
Finish Type
Tin-Plated
Physical Attribute - Tongue Angle
Straight
Conductor Type
CODE
Die Index
12
Physical Attribute - Number of Holes
2
Rating - Minimum Voltage
600
Rating - KVA
35 kV
Voltage Rating
35 kV
Number of Holes
2

Description

Two-Hole Lug Compression Connector, Barrel Size Long, Color Code Pink, Die Code 12, 348, Tongue Angle Straight, Tongue Width 0.75 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Inspection Hole No, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
