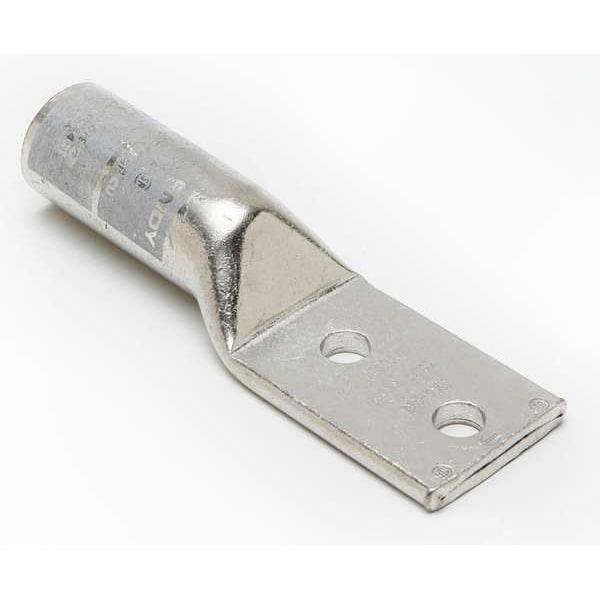

Two-Hole Compression Lug, 1000 kcmil Max, 1/2 in Stud, Long Barrel, Copper, White
Mfr # YA442N
Zoro # G4667546
product price:Â $114.99
/ea
Free Shipping & Returns
Key Features
For Wire Size
1000 kcmil
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Long
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- YA442N
- Zoro #
- G4667546
- UPC #
- 781810555644
- Country of Origin
- United States
Dimensions
- For Wire Size
- 1000 kcmil
- For Stud Size
- 1/2 in
- Barrel Size
- Long
- Tongue Width
- 2.19 in
- Length
- 7.14"
- Barrel Length
- Long
- Width
- 2.19"
- Cable Size
- 1000 kcmil
- Overall Width
- 2.19 in
- Overall Length
- 7.14 in
- Length (Straight Wireway)
- 7.14 in
- Tongue Thickness
- 0.32 in
- Hole Size
- 0.56 in
- Barrel Outside Diameter
- 1.5 in
- For Stranded Copper Wire Size - Maximum
- 1000 kcmil
- Tongue Length
- 1.27 in
- Strip Length
- 3 1/16 in
- For Stranded Copper Wire Size - Minimum
- 1000 kcmil
- Dimension - Strip Length inch
- 3-1/16 in
- Conductor - Copper Str Size
- 1000 kcmil
- Dimension - Bolt Size fraction
- 1/2 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Pad Width inch
- 2.19 in
- Dimension - Stud Size fraction
- 1 to 2
- Dimension - Z inch
- 0.64 in
- Dimension - Hole Size fraction
- 1 to 2
- Conductor - Copper Str Size Range
- 1000 kcmil
- Dimension - Stud Size inch
- 1/2 in
- Dimension - Bolt Size inch
- 0.5
- Dimension - N inch
- 0.63 in
- Dimension - L Length Overall mm
- 181 mm
- Dimension - B Length fraction
- 3 in
- Dimension - Outside Diameter inch
- 1.50 in
- Dimension - Length Overall inch
- 7.14 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - B Length inch
- 3.00 in
- Conductor Size
- 1000 KCMIL
Description
Compression Lug, Barrel Size Long, Color Code White, Die Code 27, Tongue Angle Straight, Tongue Width 2.19 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 1000 kcmil, For Stranded Copper Wire Size - Maximum 1000 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
