Shop BURNDY

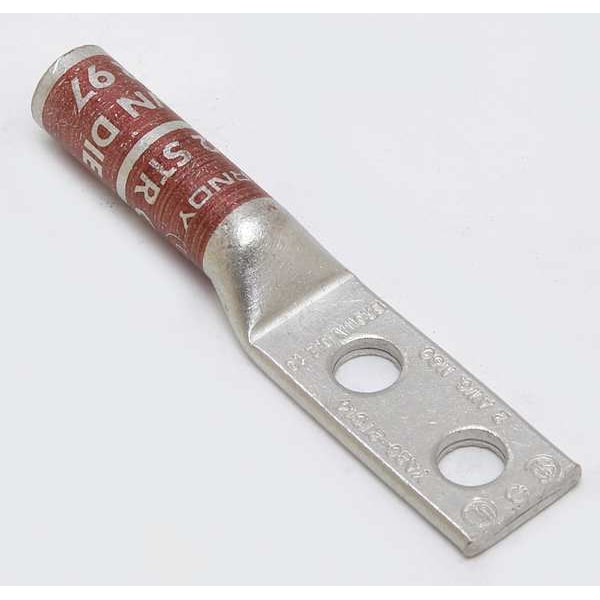

Two-Hole Compression Lug, 2 AWG Max, 1/4 in Stud, Long Barrel, Copper, Brown

  • Mfr # YA2C2TC14
  • Zoro # G4669612
CAD Available

product price:
$
10.79
/ea

Key Features

CAD Drawing
For Wire Size
2 AWG
For Conductor Material
Copper
For Stud Size
1/4 in
Material
Copper
Barrel Size
Long
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
YA2C2TC14
Zoro #
G4669612
UPC #
781810555712
Country of Origin
United States
Item
Two-Hole Compression Lug
CAD Available
Yes
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Inspection Hole
No
Die Code
10
Color Code
Brown
Standards
CSA Certified, UL 486A-486B, UL Listed
Hole Center to End
0.31 in
Hole Center to Center
0.625 in
Peep Hole
No
Tongue Style
Standard
Plate Material
Electro Tin
Lug Compression Connector Type
Two-Hole Lug Compression Connector
Connector Type
Long Barrel
Application
For Code Conductor
RoHS Compliant
Yes
Maximum Operating Temperature
194 Degrees F
Termination Style
Crimp
Barrel Style
Chamfered
For Wire Type
Stranded
Contact Finish
Tin
Special Features
Corrosion Resistant, Non-Insulated Construction
Maximum Voltage
35 kV
Type
Long Barrel, Tin Plated
Plated
Y
Finish Type
Tin-Plated
Voltage - Maximum
35000
UL Listed
Yes
Conductor - Material
Copper
Voltage Rating
35 kV
Industry Standard(s)
UL468A-468B
Physical Attribute - Number of Holes
2
Feature - Barrel Style
Chamfered
Rating - KVA
35 kV
Die Index
10
Rating - Minimum Voltage
600
Plating Type
Tin - Electro Plated
Conductor Type
CODE
Temperature Rating
194
Trade Name
HYLUGâ„¢
Feature - Barrel Type
Long
Certification - CSA Approved
Yes
Physical Attribute - Tongue Angle
Straight
Physical Attribute - Tongue Type
Standard
Number of Holes
2
Shell Material
Copper
Traction Material
Copper

Dimensions

For Wire Size
2 AWG
For Stud Size
1/4 in
Barrel Size
Long
Tongue Width
0.6 in
Length
2.86"
Width
0.6"
Cable Size
2 AWG
Barrel Length
Long
Overall Width
0.61 in
Overall Length
2.86 in
Length (Straight Wireway)
2.86 in
Strip Length
1 5/16 in
Barrel Outside Diameter
0.42 in
Tongue Length
0.65 in
Tongue Thickness
0.11 in
Hole Size
0.27 in
For Stranded Copper Wire Size - Minimum
2 AWG
For Stranded Copper Wire Size - Maximum
2 AWG
Conductor - Copper Solid Size
2 AWG
Dimension - N inch
0.31 in
Dimension - Z inch
0.34 in
Conductor - Copper Str Navy Size
60 (37) Navy
Dimension - Stud Size fraction
2023-01-04
Dimension - L Length Overall mm
73 mm
Dimension - Bolt Size fraction
2023-01-04
Dimension - Hole Size mm
7 mm
Dimension - Bolt Size inch
0.25
Conductor - Copper Str Size Range
2 AWG
Dimension - Bolt Hole Size inch
0.27 in
Dimension - B Length inch
1.25 in
Dimension - Stud Size inch
44930
Dimension - Pad Width inch
0.60 in
Dimension - Hole Size inch
0.27 in
Dimension - Outside Diameter inch
0.42 in
Dimension - Length Overall inch
2.86 in
Conductor Size
2 AWG
Conductor - Copper Str Size
2 AWG
Dimension - D inch
1.27 in
Dimension - Hole Size fraction
2023-01-04
Dimension - Strip Length inch
42374
Conductor - Copper Solid Size Range
2 AWG
Wire Rope Length
2.86 in

Description

Compression Lug, Barrel Size Long, Color Code Brown, Die Code 10, Tongue Angle Straight, Tongue Width 0.6 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Inspection Hole No, Hole Center to Center 0.625 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
