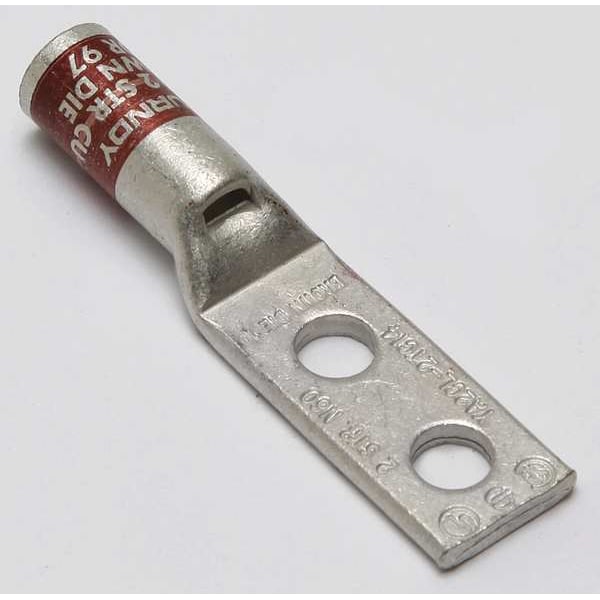

Two-Hole Compression Lug, 2 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Brown
Mfr # YA2CL2TC14
Zoro # G4652015
CAD Available
product price: $9.55
/eaKey Features
CAD Drawing
Cable Size
2 AWG
Connector Type
Standard Barrel
Width
0.6"
Material
Copper
Length
2.47"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YA2CL2TC14
Zoro #
G4652015
UPC #
781810559499
Country of Origin
United States
Dimensions
Cable Size
2 AWG
Width
0.6"
Length
2.47"
Barrel Length
Short
Overall Width
0.61 in
Overall Length
2.47 in
Outside Diameter
0.42 in
Length (Straight Wireway)
2.47 in
Tongue Width
0.60 in
For Stud Size
1/4 in
Tongue Length
0.64 in
Barrel Outside Diameter
0.42 in
Hole Size
0.27 in
Strip Length
15/16 in
For Stranded Copper Wire Size - Maximum
2 AWG
For Stranded Copper Wire Size - Minimum
2 AWG
Barrel Size
Standard
Tongue Thickness
0.11 in
For Wire Size
2 AWG
Dimension - Bolt Size fraction
2023-01-04
Dimension - Hole Size mm
7 mm
Bolt Size
1/4 in
Dimension - D inch
1.26 in
Dimension - Strip Length inch
15/16
Dimension - Pad Width inch
0.60 in
Conductor - Copper Str Navy Size
60 (37) Navy
Dimension - Outside Diameter inch
0.42 in
Conductor Size
2 AWG
Dimension - Stud Size fraction
2023-01-04
Conductor - Copper Str Size
2 AWG
Dimension - Bolt Hole Size inch
0.27 in
Dimension - B Length inch
0.88 in
Dimension - Bolt Size inch
0.25
Conductor - Copper Str Navy Size Range
60 (37) Navy
Dimension - N inch
0.31 in
Dimension - Stud Size inch
44930
Dimension - Length Overall inch
2.47 in
Conductor - Copper Str Size Range
2 AWG
Dimension - Hole Size inch
0.27 in
Dimension - Z inch
0.33 in
Dimension - L Length Overall mm
63 mm
Dimension - Hole Size fraction
2023-01-04
Description
Compression Lug, Barrel Size Standard, Color Code Brown, Die Code 10, Tongue Angle Straight, Tongue Width 0.6 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Inspection Hole Yes, Hole Center to Center 0.625 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
