  11. Two-Hole Compression Lug, 350 kcmil Max, Long Barrel, Copper, Blue

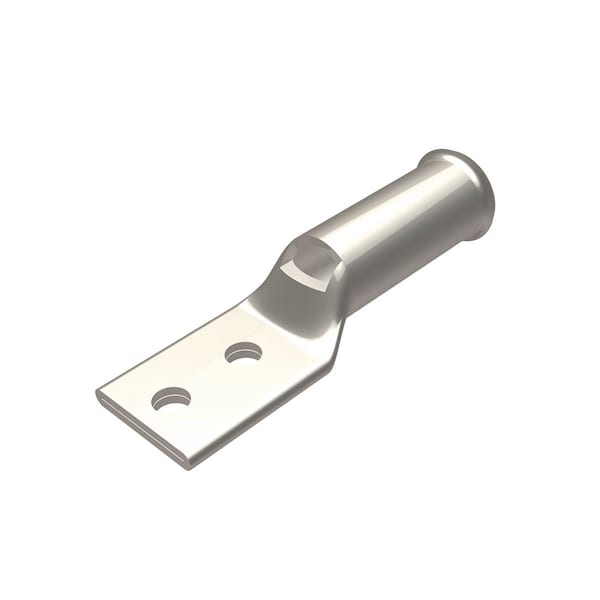

Burndy Two-Hole Compression Lug, 350 kcmil Max, Long Barrel, Copper, Blue YAZ342TC38FXB - main

Two-Hole Compression Lug, 350 kcmil Max, Long Barrel, Copper, Blue

  • Mfr # YAZ342TC38FXB

  • Zoro # G205778268

product price: $45.89
/ea
Sold in multiples of 6 for $275.34

Key Features

Material
Copper
Color Code
Blue
Standards
UL 486A-486B
Die Code
19, 470
Conductor - Copper Flex K Size
350
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAZ342TC38FXB
Zoro #
G205778268
UPC #
-
Country of Origin
United States

Dimensions

Conductor - Copper Flex K Size
350
Conductor - Copper DLO Size
373.7 (925/#24)
Dimension - Z inch
0.43 in
Dimension - Pad Width inch
1.55 in
Dimension - L Length Overall mm
129 mm
Dimension - Length Overall inch
5.09 in
Dimension - Hole Size inch
0.41 in
Conductor - Copper Flex M Size
350
Dimension - N inch
0.41 in
Dimension - Hole Size mm
10 mm
Conductor - Copper Flex G Size
350
Dimension - Inside Diameter inch
0.83 in
Conductor - Copper Flex H Size
350
Conductor - Copper Flex I Size
350
Dimension - B Length inch
2.48 in
Dimension - B Length fraction
2-1/2 in
Dimension - Outside Diameter inch
1.06 in
Conductor - Copper DLO Size Range
373 kcmil
Conductor Size
350 kcmil
Dimension - Hole Size fraction
2023-03-08
Conductor - Copper Flex I Size Range
350 kcmil
Conductor - Copper Str Size Range
350 kcmil
Conductor - Copper Str Size
350 KCMIL
Conductor - Copper Flex H Size Range
350 kcmil
Dimension - Stud Size fraction
2023-03-08
Dimension - Bolt Size inch
0.38
Conductor - Copper Flex K Size Range
350 kcmil
Conductor - Copper Flex G Size Range
350 kcmil
Dimension - Bolt Size fraction
2023-03-08
For Wire Size
350 kcmil
Barrel Size
Long
Tongue Width
1.55 in

Details

Material
Copper
Color Code
Blue
Standards
UL 486A-486B
Die Code
19, 470
Item
Two-Hole Compression Lug
Die Index
19;470
Plated
Y
Rating - Minimum Voltage
600
Type
Long Barrel, Skive
Voltage - Maximum
35000
Feature - Barrel Type
Long
Rating - KVA
35 kV
Physical Attribute - Number of Holes
2
Conductor - Material
Copper
Certification - CSA Approved
Yes
Plating Type
Tin - Electro Plated
Physical Attribute - Tongue Angle
Straight
UL Listed
Yes
Finish Type
Tin-Plated
Feature - Barrel Style
BelledSkived
Conductor Type
FLEX
Voltage Rating
35 kV
Industry Standard(s)
UL 486A-486B
Trade Name
HYLUGâ„¢
Application
Wire Termination
Number of Holes
2
For Conductor Material
Copper
Tongue Angle
Straight

Description

Tin Plated

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
