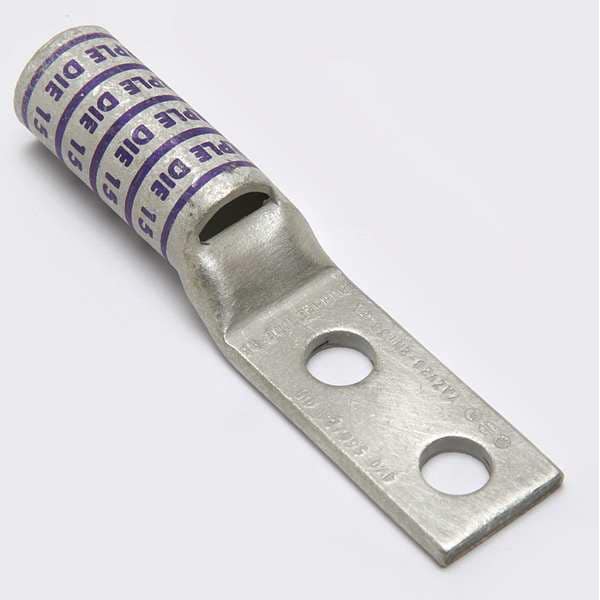

Two-Hole Compression Lug, 4/0 AWG Max, 3/8 in Stud, Long Barrel, Copper, Purple
Mfr # YAZV282NT38FX
Zoro # G4701383
product price: $28.15
/eaKey Features
Cable Size
4/0 AWG
Connector Type
Long Barrel
Width
0.94"
Material
Copper
Length
3.96"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YAZV282NT38FX
Zoro #
G4701383
UPC #
781810559833
Country of Origin
United States
Dimensions
Cable Size
4/0 AWG
Width
0.94"
Length
3.96"
Barrel Length
Long
Overall Width
0.94 in
Overall Length
3.96 in
Length (Straight Wireway)
4.02 in
Strip Length
1 11/16 in
Tongue Length
0.84 in
For Stranded Copper Wire Size - Minimum
4/0 AWG
For Stranded Copper Wire Size - Maximum
4/0 AWG
For Stud Size
3/8 in
Barrel Outside Diameter
0.77 in
Hole Size
0.39 in
Tongue Thickness
0.17 in
Tongue Width
0.94 in
For Wire Size
4/0 AWG
Barrel Size
Long
Dimension - Z inch
0.43 in
Dimension - Strip Length inch
42380
Conductor - Copper Flex M Size
4/0 AWG
Dimension - B Length inch
1.62 in
Dimension - Pad Width inch
0.94 in
Conductor - Copper Str Compact Size
"4/0 AWG"
Conductor - Copper Flex I Size
4/0 AWG
Dimension - Hole Size inch
0.41
Dimension - B Length fraction
1-5/8 in
Dimension - L Length Overall mm
101 mm
Conductor - Copper Flex H Size Range
4/0 AWG
Conductor - Copper Str Navy Size
200
Conductor - Copper Flex K Size
4/0 AWG
Dimension - Hole Size fraction
2023-03-08
Conductor - Copper Str Size
4/0 AWG
Conductor - Copper DLO Size
4/0 (550/#24) DLO
Dimension - Bolt Size inch
0.38
Dimension - Length Overall inch
3.96 in
Conductor - Copper Flex K Size Range
4/0 AWG
Dimension - Stud Size fraction
2023-03-08
Dimension - Outside Diameter inch
0.77 in
Dimension - Diameter Min Size inch
1.84 in
Conductor - CopperWeld Str Size
4/0 E AWG;4/0 EK AWG;4/0 F AWG;4/0 G AWG;4/0 V AWG
Dimension - N inch
0.41 in
Conductor - Copper Flex G Size Range
4/0 AWG
Dimension - Bolt Size fraction
44993
Dimension - Length Side B inch
3.96 in
Conductor - Copper DLO Size Range
4/0 AWG
Conductor - Copper Str Size Range
4/0 AWG
Conductor - Copper Flex H Size
4/0 AWG
Conductor Size
4/0 AWG
Conductor - Copper Flex G Size
4/0 AWG
Conductor - Copper Flex I Size Range
4/0 AWG
Dimension - Hole Size mm
10.4 mm
Dimension - Bolt Hole Size inch
0.39 in
Dimension - Stud Size inch
3/8 in
Description
Compression Lug, Barrel Size Long, Color Code Purple, Die Code 15, Tongue Angle Straight, Tongue Width 0.94 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 4/0 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, Inspection Hole Yes, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
