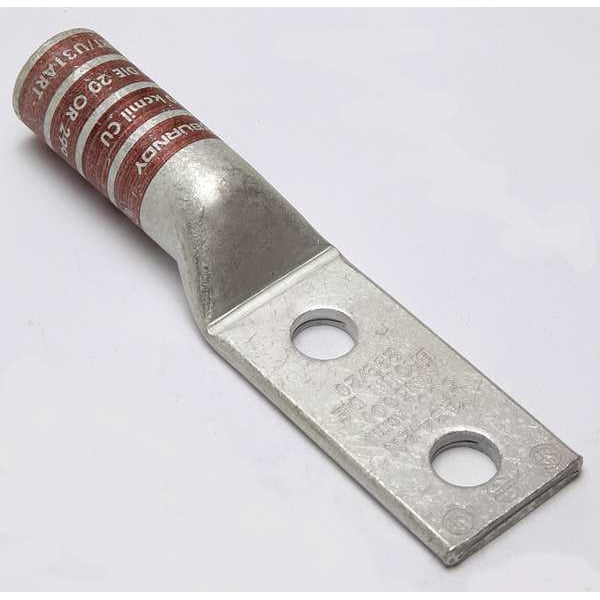

Two-Hole Compression Lug, 500 kcmil Max, 1/2 in Stud, Long Barrel, Copper, Brown
Mfr # YA342N
Zoro # G4694207
CAD Available
product price: $37.99
/eaKey Features
CAD Drawing
Cable Size
500 kcmil
Connector Type
Long Barrel
Width
1.55"
Material
Copper
Length
6.06"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YA342N
Zoro #
G4694207
UPC #
781810559666
Country of Origin
Multiple
Dimensions
Cable Size
500 kcmil
Width
1.55"
Length
6.06"
Barrel Length
Long
Overall Length
6.06 in
Overall Width
1.55 in
Length (Straight Wireway)
6.06 in
Strip Length
2 5/16 in
Tongue Width
1.55 in
For Wire Size
500 kcmil
For Stud Size
1/2 in
Tongue Thickness
0.22 in
Barrel Outside Diameter
1.06 in
Hole Size
0.56 in
Tongue Length
1.27 in
For Stranded Copper Wire Size - Minimum
500 kcmil
Barrel Size
Long
For Stranded Copper Wire Size - Maximum
500 kcmil
Dimension - Bolt Hole Size inch
0.52 in
Dimension - Hole Size mm
14 mm
Dimension - Outside Diameter inch
1.06 in
Conductor - Copper Str Size
500 kcmil
Dimension - Hole Size inch
0.56 in
Dimension - B Length fraction
2-1/4 in
Dimension - Length Overall inch
6.06 in
Dimension - Hole Size fraction
1 to 2
Dimension - Stud Size fraction
1 to 2
Dimension - B Length inch
2.25 in
Dimension - L Length Overall mm
154 mm
Dimension - Z inch
0.64 in
Dimension - Bolt Size fraction
1 to 2
Dimension - Strip Length inch
42405
Conductor Size
500 KCMIL
Dimension - N inch
0.63 in
Dimension - Stud Size inch
1 to 2
Dimension - Pad Width inch
1.55 in
Conductor - Copper Str Size Range
500 KCMIL
Dimension - Bolt Size inch
0.5, 0.5
Description
Compression Lug, Barrel Size Long, Color Code Brown, Die Code 20, 299, Tongue Angle Straight, Tongue Width 1.55 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 500 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
