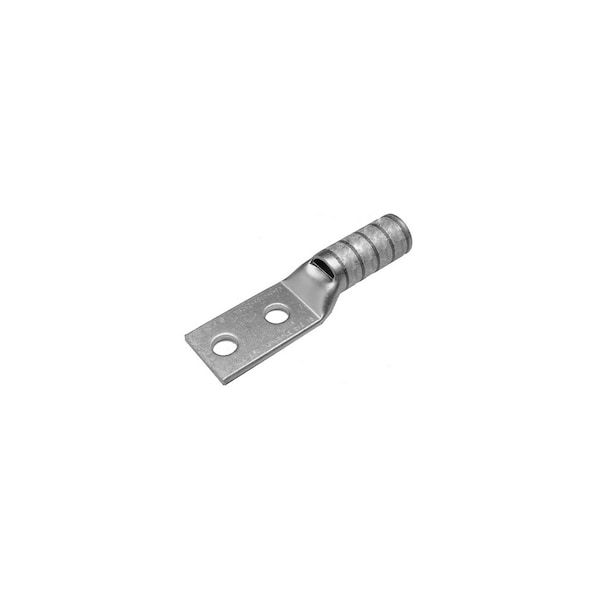

Two-Hole Compression Lug, 500 kcmil Max, 1/2 in Stud, Long Barrel, Copper, Pink
- Mfr # YAZ382NTCFX
- Zoro # G0694155
product price:Â
$
71.99
/ea
Key Features
For Wire Size
500 kcmil
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Long
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- YAZ382NTCFX
- Zoro #
- G0694155
- UPC #
- 781810228678
- Country of Origin
- Unknown
Dimensions
- For Wire Size
- 500 kcmil
- For Stud Size
- 1/2 in
- Barrel Size
- Long
- Tongue Width
- 1.81 in
- Dimension - B Length inch
- 2.81 in
- Conductor - Copper Flex M Size Range
- 500 kcmil
- Dimension - Length Overall inch
- 6.72 in
- Conductor - Copper Flex K Size Range
- 500 kcmil
- Dimension - B Length fraction
- 2-13/16 in
- Dimension - Length Side B inch
- 6.72 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Hole Size inch
- 0.56 in
- Conductor - Copper Flex H Size Range
- 500 kcmil
- Conductor - Copper Flex K Size
- 500 kcmil
- Conductor - Copper Flex G Size
- 500 kcmil
- Dimension - Outside Diameter inch
- 1.25 in
- Conductor - Copper Flex I Size
- 500 kcmil
- Dimension - Bolt Hole Size inch
- 0.56 in
- Conductor - Copper Flex I Size Range
- 500 kcmil
- Dimension - L Length Overall mm
- 171 mm
- Dimension - Z inch
- 0.65 in
- Conductor - Copper DLO Size
- 535.3 (1325/#24) DLO
- Dimension - Pad Width inch
- 1.84 in
- Conductor - Copper Flex M Size
- 500 kcmil
- Conductor - Copper Flex G Size Range
- 500 kcmil
- Dimension - Bolt Size fraction
- 1 to 2
- Dimension - Strip Length inch
- 38020
- Dimension - N inch
- 0.62 in
- Conductor - Copper DLO Size Range
- 535.3 (1325/#24) DLO
- Conductor - Copper Flex H Size
- 500 kcmil
- Lug Length X Tongue Width (In.)
- 6.72 x 1.81 in
- Stud Hole Size (In.)
- 1/2"
