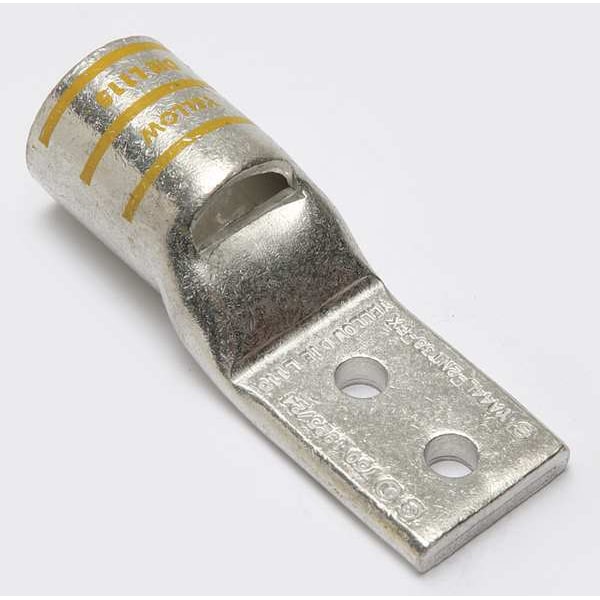

Two-Hole Compression Lug, 750 kcmil Max, 1/2 in Stud, Standard Barrel, Copper, Yellow
- Mfr # YA44L2NNTFX
- Zoro # G4649276
CAD Available
product price:Â
$
208.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
For Wire Size
750 kcmil
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- YA44L2NNTFX
- Zoro #
- G4649276
- UPC #
- 781810559864
- Country of Origin
- United States
Dimensions
- For Wire Size
- 750 kcmil
- For Stud Size
- 1/2 in
- Barrel Size
- Standard
- Tongue Width
- 1.63 in
- Length
- 5.74"
- Width
- 1.63"
- Barrel Length
- Short
- Cable Size
- 750 kcmil
- Overall Length
- 5.74 in
- Overall Width
- 1.63 in
- Length (Straight Wireway)
- 5.74 in
- For Stranded Copper Wire Size - Maximum
- 777 kcmil
- Tongue Length
- 1.28 in
- Strip Length
- 1 5/8 in
- For Stranded Copper Wire Size - Minimum
- 750 kcmil
- Barrel Outside Diameter
- 1.5 in
- Hole Size
- 0.52 in
- Conductor - Copper Flex K Size Range
- 750
- Dimension - Outside Diameter inch
- 1.50 in
- Dimension - B Length fraction
- 1-11/16 in
- Dimension - Stud Size inch
- 1 to 2
- Conductor - Copper Flex H Size Range
- 750
- Conductor - Copper DLO Size
- 777.7 (1925/#24)
- Conductor - Copper Str Size
- 750
- Conductor - Copper Flex H Size
- 750
- Dimension - Stud Size fraction
- 1 to 2
- Conductor - Copper DLO Size Range
- 777.7 (1925/#24)
- Dimension - Pad Width inch
- 1.63 in
- Dimension - Z inch
- 0.65 in
- Conductor - Copper Flex G Size
- 750
- Conductor - Copper Flex G Size Range
- 750
- Conductor - Copper Flex I Size Range
- 750
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Length Overall inch
- 5.74 in
- Dimension - B Length inch
- 1.65 in
- Dimension - Bolt Size inch
- 0.5
- Conductor - Copper Flex K Size
- 750
- Conductor - Copper Str Size Range
- 750
- Dimension - Hole Size inch
- 0.56
- Dimension - Strip Length inch
- 39452
- Dimension - Hole Size mm
- 14 mm
- Conductor Size
- 750 KCMIL
- Dimension - D inch
- 3.03 in
- Conductor - Copper Flex I Size
- 750
- Dimension - L Length Overall mm
- 146 mm
- Conductor - Copper Flex M Size
- 750
- Dimension - N inch
- 0.63 in
- Dimension - Bolt Size fraction
- 1 to 2
- Dimension - Hole Size fraction
- 1 to 2
- Wire Rope Length
- 5.74 in
Description
Two-Hole Lug Compression Connector, Barrel Size Standard, Color Code Yellow, Die Code L115, Tongue Angle Straight, Tongue Width 1.63 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 750 kcmil, For Stranded Copper Wire Size - Maximum 777 kcmil, Inspection Hole Yes, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp
