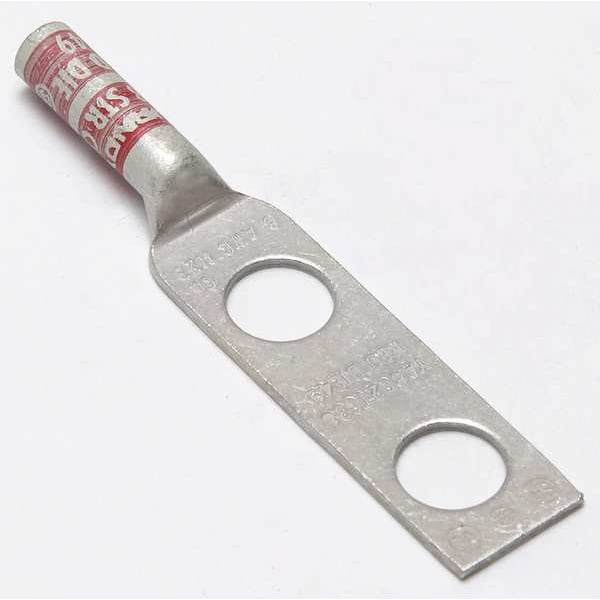

Two-Hole Compression Lug, 8 AWG Max, 3/8 in Stud, Long Barrel, Copper, Red
Mfr # YA8C2TC38
Zoro # G4665071
CAD Available
product price: $8.95
/eaKey Features
CAD Drawing
For Wire Size
8 AWG
For Conductor Material
Copper
For Stud Size
3/8 in
Material
Copper
Barrel Size
Long
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YA8C2TC38
Zoro #
G4665071
UPC #
781810555835
Country of Origin
United States
Dimensions
For Wire Size
8 AWG
For Stud Size
3/8 in
Barrel Size
Long
Tongue Width
0.58 in
Width
0.58"
Barrel Length
Long
Length
2.89"
Cable Size
8 AWG
Overall Width
0.59 in
Overall Length
2.89 in
Length (Straight Wireway)
2.89 in
Tongue Length
0.84 in
Hole Size
0.41 in
Strip Length
7/8 in
Tongue Thickness
0.06 in
Barrel Outside Diameter
0.27 in
For Stranded Copper Wire Size - Maximum
8 AWG
For Stranded Copper Wire Size - Minimum
8 AWG
Dimension - Bolt Size inch
0.38
Dimension - D inch
1.84 in
Dimension - Bolt Size fraction
2023-03-08
Dimension - Length Overall inch
2.89 in
Dimension - Stud Size inch
44993
Dimension - B Length inch
0.81 in
Dimension - Hole Size fraction
2023-03-08
Conductor - Copper Str Navy Size
23 (7) Navy
Conductor - Copper DLO Size
8 AWG
Conductor - Copper Str Compact Size
"8 AWG"
Dimension - Hole Size mm
10 mm
Dimension - Bolt Hole Size inch
0.39 in
Dimension - Hole Size inch
0.41 in
Dimension - L Length Overall mm
73 mm
Dimension - Pad Width inch
0.58 in
Dimension - Strip Length inch
45115
Dimension - Outside Diameter inch
0.27 in
Conductor - Copper Flex M Size
"8 AWG"
Conductor - Copper Str Size Range
8 AWG
Conductor - Copper Flex I Size
"8 AWG"
Conductor - Copper Solid Size
8 AWG
Conductor - Copper Solid Size Range
8 AWG
Conductor - Copper Flex H Size
"8 AWG"
Dimension - N inch
0.41 in
Dimension - Stud Size fraction
2023-03-08
Conductor - Copper Str Size
8 AWG
Conductor - Copper Flex G Size
"8 AWG"
Dimension - Z inch
0.43 in
Conductor - Copper Str Navy Size Range
23 (7) Navy
Conductor - Copper Flex K Size
"8 AWG"
Conductor Size
8 AWG
Description
Compression Lug, Barrel Size Long, Color Code Red, Die Code 49, Tongue Angle Straight, Tongue Width 0.58 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 8 AWG, For Stranded Copper Wire Size - Maximum 8 AWG, Inspection Hole No, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
