  11. Uninsulated Compression Terminal, 2/0 AWG Max, 5/8 in Stud, Long Barrel, Copper, None

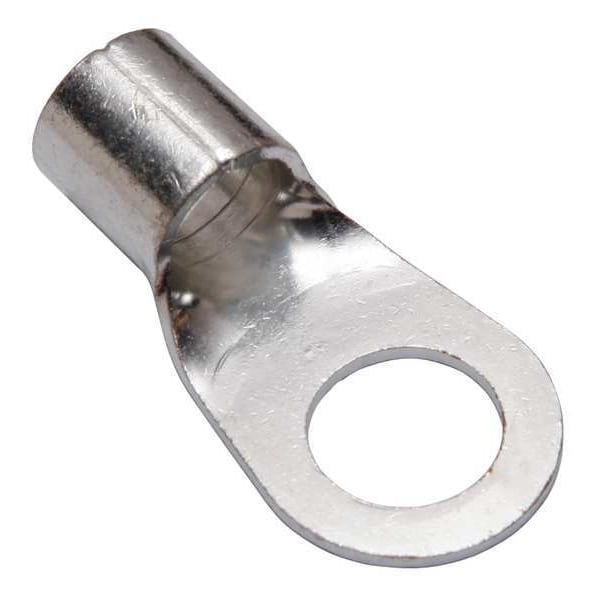

Burndy Uninsulated Compression Terminal, 2/0 AWG Max, 5/8 in Stud, Long Barrel, Copper, None YAD26M16E58 - main

Uninsulated Compression Terminal, 2/0 AWG Max, 5/8 in Stud, Long Barrel, Copper, None

  • Mfr # YAD26M16E58

  • Zoro # G6172546

product price: $10.79
/ea

Key Features

Cable Size
2/0 AWG
Connector Type
YAD
Width
1.1"
Material
Copper
Length
2.2"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD26M16E58
Zoro #
G6172546
UPC #
781810668221
Country of Origin
Taiwan, Province of China

Dimensions

Cable Size
2/0 AWG
Width
1.1"
Length
2.2"
Overall Length
2.28 in
Barrel Length
0.71 in
Tongue Width - Wire Connector
1.1 in
Strip Length
7/8 in
Maximum Wire Size
2/0 AWG
Tongue Thickness
0.08 in
For Wire Size
2/0 AWG
Minimum Wire Size
2/0 AWG
Barrel Outside Diameter
0.67 in
Tongue Length
1.57 in
Tongue Width
1.14 in
Hole Diameter
0.67 in
Barrel Size
Long
Dimension - Strip Length inch
13/16
Conductor - Copper Str Size
2/0 AWG
Dimension - Stud Size inch
45054
Dimension - Length Overall inch
2.28 in
Dimension - L Length Overall mm
56 mm
Dimension - Pad Width inch
1.14 in
Conductor Size
2/0 AWG
Dimension - Bolt Size fraction
2023-05-08
Dimension - B Length inch
0.71 in
Dimension - Hole Size inch
0.67 in
Dimension - Outside Diameter inch
0.67 in
For Stud Size
5/8 in

Details

Connector Type
YAD
Material
Copper
Color Code
None
Plate Material
Tin
Tongue Style
Ring
Connection Material
Tin Plater Copper
Max. Voltage
600 V
Seam
Brazed
Insulation Type
Non-Insulated
Wire Range
2/0 AWG
Peep Hole
No
Die Code
1022
Insulation Color
Bare
Max. Temp.
302 Degrees F
Hole Center to End
1.650"
Item
Uninsulated Compression Terminal
Standards
UL 467
Contact Material
Copper
Contact Finish
Tin
Insulation Material
None
Maximum Voltage
600 V
Maximum Operating Temperature
302 Degrees F
Hole Spacing
0.94 in
Terminal Shape
Ring Tongue
RoHS Compliant
Yes
Termination Style
Crimp
Minimum Operating Temperature
302 Degrees F
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Seam Style
Brazed
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Barrel Style
Brazed
Insulation Coverage
None
Compatible with Product Type
Code, Flex Cable
Conductor Type
CU C Str-SizeCU C Flex-Size
Voltage - Maximum
600 V
Feature - Barrel Type
Long
Plated
Y
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Trade Name
HYLUGâ„¢
Type
Ring Tongue
Physical Attribute - Tongue Type
Ring
Plating Type
Tin
Item Type
3B
Industry Standard(s)
UL467
For Conductor Material
Copper
Inspection Hole
No

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 2/0 AWG, Maximum Wire Size 2/0 AWG, Termination Style Crimp, Tongue Width 1.14 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.71 in, Barrel Outside Diameter 0.67 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221, Compatible with Product Type Code, Flex Cable
