  11. Uninsulated Compression Terminal, 400 kcmil Max, 3/8 in Stud, Long Barrel, Copper, None

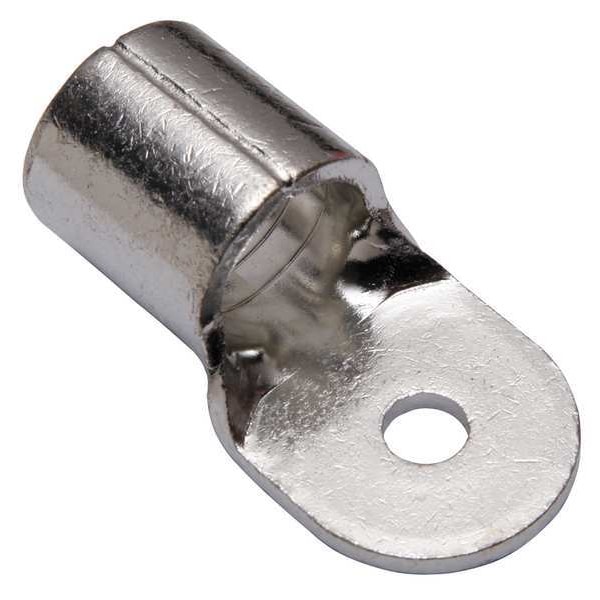

Burndy Uninsulated Compression Terminal, 400 kcmil Max, 3/8 in Stud, Long Barrel, Copper, None YAD33M10E38 - main

Uninsulated Compression Terminal, 400 kcmil Max, 3/8 in Stud, Long Barrel, Copper, None

  • Mfr # YAD33M10E38

  • Zoro # G6143663

product price: $49.59
/ea

Key Features

Cable Size
400 Kcmil to 450 kcmil
Connector Type
YAD
Width
1-1/2"
Material
Copper
Length
2.95"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD33M10E38
Zoro #
G6143663
UPC #
781810668511
Country of Origin
Taiwan, Province of China

Dimensions

Cable Size
400 Kcmil to 450 kcmil
Width
1-1/2"
Length
2.95"
Barrel Length
1.26 in
Overall Length
3.01 in
Tongue Width - Wire Connector
1.5 in
Tongue Width
1.50 in
Minimum Wire Size
400 kcmil
Strip Length
1 3/8 in
Hole Diameter
0.41 in
Maximum Wire Size
450 kcmil
Barrel Size
Long
Tongue Thickness
0.16 in
Barrel Outside Diameter
1.24 in
For Wire Size
400 kcmil
Tongue Length
1.75 in
Dimension - Length Overall inch
3.01 in
Dimension - B Length inch
1.26 in
Dimension - L Length Overall mm
76 mm
Dimension - Outside Diameter inch
1.24 in
Dimension - Hole Size inch
0.41 in
Dimension - Stud Size inch
44993
Dimension - Pad Width inch
1.50 in
Dimension - Bolt Size fraction
2023-03-08
Dimension - Strip Length inch
39450
Conductor - Copper Str Size Range
400-450 kcmil
Conductor - Copper Str Size
400 kcmil;450 kcmil
For Stud Size
3/8 in

Details

Connector Type
YAD
Material
Copper
Color Code
None
Wire Range
450 kcmil
Max. Temp.
302 Degrees F
Insulation Color
Bare
Item
Uninsulated Compression Terminal
Tongue Style
Ring
Peep Hole
No
Max. Voltage
600 V
Insulation Type
Non-Insulated
Plate Material
Tin
Seam
Brazed
Connection Material
Tin Plater Copper
Hole Center to End
2.200"
Standards
UL 467
Barrel Style
Brazed
Hole Spacing
0.94 in
Maximum Voltage
600 V
Termination Style
Crimp
Contact Finish
Tin
Insulation Material
None
Compatible with Product Type
Code, Flex Cable
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Insulation Coverage
None
Maximum Operating Temperature
302 Degrees F
Compatible with Series
PAT46, PAT4PC834, PAT750, PAT81KFT, Y46, Y4PC834, Y750, Y81KFT
Contact Material
Copper
Seam Style
Brazed
RoHS Compliant
No
Terminal Shape
Ring Tongue
Minimum Operating Temperature
302 Degrees F
Trade Name
HYLUGâ„¢
Item Type
3B
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Plating Type
Tin
Physical Attribute - Tongue Type
Ring
Voltage - Maximum
600 V
Feature - Barrel Type
Long
Industry Standard(s)
UL467
Plated
Y
Type
Ring Tongue
Conductor Type
CU C Str-SizeCU C Flex-Size
Inspection Hole
No
For Conductor Material
Copper

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 400 kcmil, Maximum Wire Size 450 kcmil, Termination Style Crimp, Tongue Width 1.5 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 1.26 in, Barrel Outside Diameter 1.24 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221
