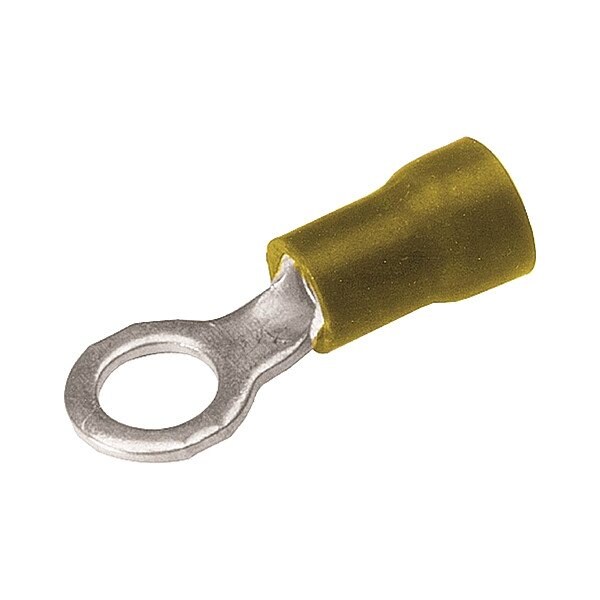

Vinyl - #10 awg - #1/2 inch stud hole
Mfr # TP1012
Zoro # G922378888
product price:Â $2.19
/ea
Sold in multiples of 50 for $109.50
Key Features
Termination Style
Crimp
Terminal Shape
Ring
Minimum Wire Size
12 AWG
Insulation Color
Yellow
Insulation Type
Vinyl
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
TP1012
Zoro #
G922378888
UPC #
781810524299
Country of Origin
United States
Dimensions
Minimum Wire Size
12 AWG
Stud Size
1/2 in
Maximum Wire Size
10 AWG
Details
Item
Ring Terminal
Termination Style
Crimp
Terminal Shape
Ring
Insulation Color
Yellow
Insulation Type
Vinyl
Maximum Voltage
600 V
Standards
CSA Certified, UL Listed, UL467
Maximum Operating Temperature
221 Degrees F
Contact Material
Copper
Insulation Coverage
Partial Coverage
Description
Vinyl Ring Terminal For 12 - 10 AWG, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Tongue Width 0.69 in, Contact Finish Tin, Contact Material Copper, UL 94 Flammability Rating V-0, Standards EU RoHS, UL467, Barrel Length 0.9 in, Barrel Outside Diameter 0.26 in, Barrel Style Serrated Funnel Entry, Hole Diameter 0.54 in
