Vinyl - #16 awg - #10 stud hole
- Mfr # TP1610
- Zoro # G522378875
product price:Â
$
104.99
/pk 100, $1.05/ea
Free Shipping & Returns
Key Features
Insulation Type
Vinyl
Terminal Shape
Standard Ring Tongue
Maximum Voltage
600 V
Contact Material
Copper
Standards
CSA Certified, UL Listed, UL467
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- TP1610
- Zoro #
- G522378875
- UPC #
- 781810714843
- Country of Origin
- United States
- Item
- Ring Terminal
- Insulation Type
- Vinyl
- Terminal Shape
- Standard Ring Tongue
- Maximum Voltage
- 600 V
- Contact Material
- Copper
- Standards
- CSA Certified, UL Listed, UL467
- Insulation Color
- Red
- Termination Style
- Crimp
- Maximum Operating Temperature
- 221 Degrees F
- Insulation Coverage
- Partial Coverage
- Special Features
- Deep V Groove Serrations in the Inner Barrel Provides Added Holding Strength and Better Conductivity
- UL 94 Flammability Rating
- V-0
- Barrel Style
- Serrated Funnel Entry
- Insulation Material
- Vinyl
- Hole Spacing
- 0.16 in
- Contact Finish
- Tin
Description

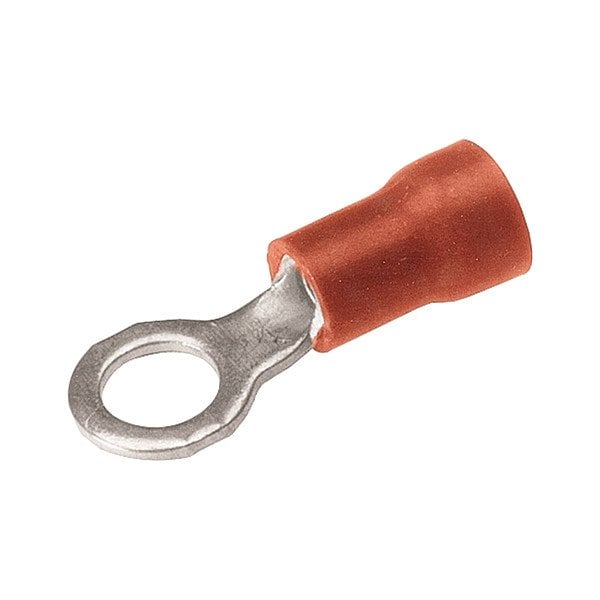

Vinyl Ring Terminal For 22 - 16 AWG, Insulation Color Red, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 22 AWG, Maximum Wire Size 16 AWG, Tongue Width 0.31 in, Contact Finish Tin, Contact Material Copper, UL 94 Flammability Rating V-0, Standards CSA, EU RoHS, UL467, Barrel Length 0.59 in, Barrel Outside Diameter 0.15 in, Barrel Style Serrated Funnel Entry, Hole Diameter 0.23 in
