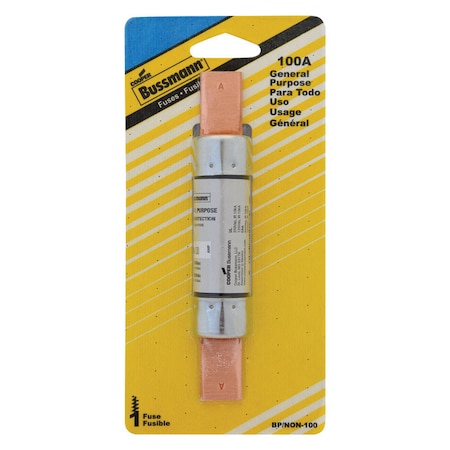

Automotive Fuse, NON Series, 100A, 125V DC, Non-Indicating
Mfr # BP/NON-100
Zoro # G1932138
CAD Available
product price: $18.15
/eaKey Features
CAD Drawing
Series
NON
Speed
Time-Delay
Amps
100A
DC Voltage Rating
125V DC
AC Voltage Rating
250V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
BP/NON-100
Zoro #
G1932138
UPC #
51712762632
Country of Origin
Mexico
Dimensions
Length
1.125 in
Details
CAD Available
Yes
Item
Automotive Fuse
Series
NON
Speed
Time-Delay
Amps
100A
DC Voltage Rating
125V DC
AC Voltage Rating
250V AC
Visual Indication
Non-Indicating
Interrupt Rating
10kA at 250V AC, 10kA at 125 V DC
Body Style
Cylindrical
Body Material
Melamine
Equivalent Brand and Series
Bussmann NON, Littelfuse NLN, Mersen OT
Equivalent Series
NLN, NON, OT
Fits Fuse Block Style
Rejection
Class
H
Description
Used in lighting circuits, main panel protection and other circuits that don't contain large electric motors or inductive loads. Up to 60 ampere fuses UL Listed Class K5 (IR 50 kA). 70 to 600 ampere fuses UL Class H (IR 10 kA).
- • General-purpose one-time, non-cartridge fuse
- • For use in non-current limiting lighting circuits, main panel protections, or other circuits that do not contain large electric motors
- • No time delay
- • 250 volt
- • 100 amp
- •
