4x4 4K UHD HDMI Seamless Matrix Switcher and Video Wall Processor with Scaler/IR/Audio/RS-232

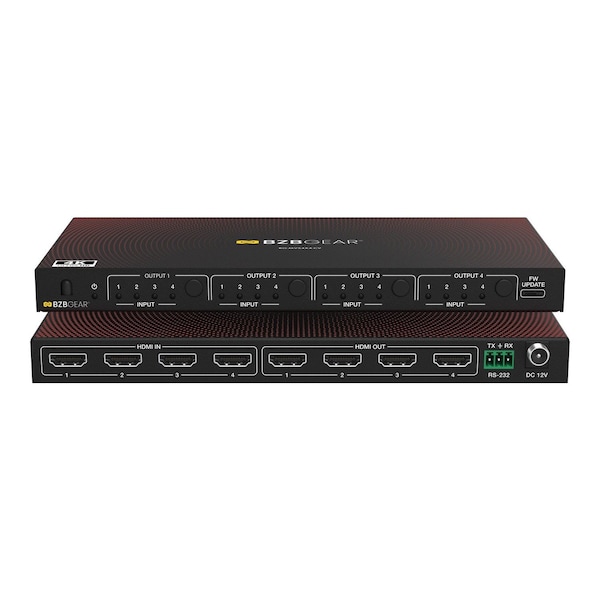

Overview The BG-MVS4X4-CV is a versatile 4x4 seamless HDMI matrix switcher that doubles as a powerful video wall processor, offering flexible video routing and advanced display configurations. In matrix switcher mode, any of the four HDMI inputs can be routed to any of the four HDMI outputs with zero switching delay or image loss. In video wall mode, the unit can split a single HDMI source across 2 to 4 screens, supporting configurations such as 2x2, 4x1, or 1x4 to create an engaging large-format display. Engineered for high-performance AV applications, the BG-MVS4X4-CV supports input resolutions up to 4K at 30Hz and features seamless switching technology for smooth transitions. HDMI output resolutions can be upscaled or downscaled to 720p, 1080p, 1920x1200, or 4K at 30Hz, ensuring compatibility with a wide range of display devices. Audio support includes LPCM, Dolby Digital, Dolby Digital Plus, and DTS formats. Control is simple and flexible via front panel buttons, IR remote, or RS-232 commands. With HDCP 1.4 compliance, 10.2Gbps video bandwidth, and a compact design for easy installation, this multifunctional switcher is ideal for video conferencing, digital signage, live events, classrooms, and control rooms.
