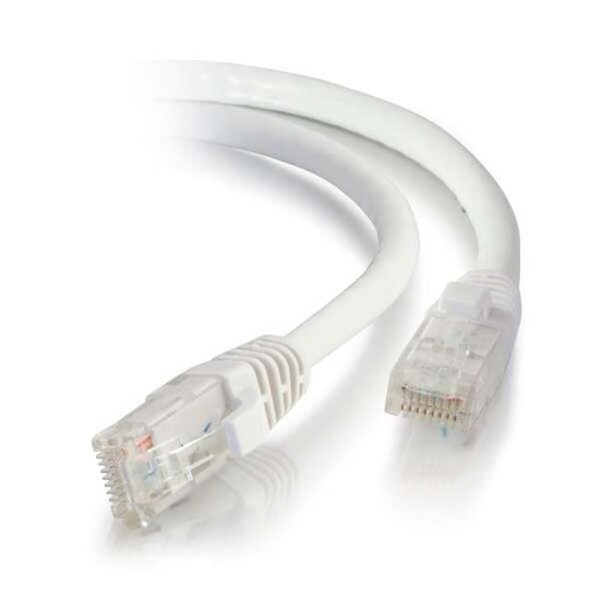

Cables To Go 00485 8 ft. Cat5e Snagless Unshielded-UTP Ethernet Network Patch Cable - White (Discontinued)
- Mfr # 485
- Zoro # G803898719
Specifications
Product Information
Description
For fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat5e TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief.
Features- Snagless design protects clips when plugging and unplugging
- Standard RJ45 connectors and unshielded twisted pair wires
- Material - H-D PE
- Diameter - 0.95 ± 0.05 mm
- Material - FR-PVC
- Nominal Thickness - 0.55 mm
- Outer Diameter - 5.30 mm
- Material - Polycarbonate
- Hood Material - Molded PVC
- Contact Material - Copper alloy plated with gold-50μ
- Color: White
- Conductor DC Resistance: 89 Ohm/km
- Insulation Resistance: 100 Ohm/km
- Dielectric Strength: 500 MV/m
- Size: 8 ft.
- Weight : 0.192 lbs
