  11. Overhead Stirrer, 6.6 gal, 1/10 HP

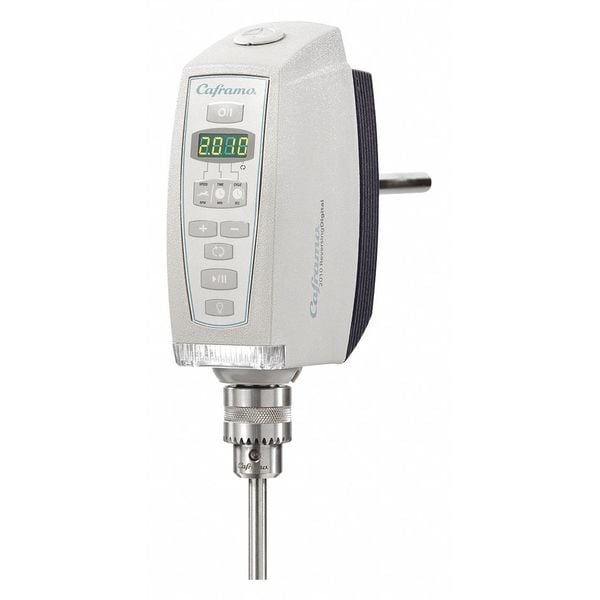

Caframo Overhead Stirrer, 6.6 gal, 1/10 HP BDC2010 - main

Overhead Stirrer, 6.6 gal, 1/10 HP

  • Mfr # BDC2010

  • Zoro # G4818432

product price: $1,555.99
/ea
Free Shipping & Returns

Key Features

Volume
25 L
Max. Viscosity
20,000 cps
Maximum Torque
90 N-cm
HP
0.1
Operating Speed
40 to 2010 rpm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BDC2010
Zoro #
G4818432
UPC #
-
Country of Origin
Canada

Dimensions

Overall Height
9 3/4 in
Overall Width
3 in
Shaft Dia.
10 mm
Manufacturers Warranty Length
3 yr.
Overall Length
11 in
Shaft Diameter
3/8 in
Chuck Size - Maximum
13/32 in

Details

Item
Overhead Mixer
Volume
25 L
Max. Viscosity
20,000 cps
Maximum Torque
90 N-cm
HP
0.1
Operating Speed
40 to 2010 rpm
Mixing Speed Type
Variable
Voltage
100/240V
Reversible
Yes
Plug Style - Lab Equipment
Standard
Through Shaft
Yes
Includes
Chuck, Chuck Key, External Power Supply, Grounded North American Power Cord, Printed Manual, Support Rod
Special Features
Counterclockwise Agitation, Reverse Mixing
Amps
2.5/3.8
Material
Zinc
Power Required
100 to 240V
Color
Gray
Product Type
Overhead Stirrer
Wattage
50 W
Weight
7 lb
Frequency
50/60 Hz
Current
2.5 A, 3.8 A
Operating Temperature - Minimum
5 Degrees C
Horsepower
0.07 hp
Mixing Speed - Maximum
2,010 RPM
Chuck Type
Keyed
Operating Temperature - Maximum
40 Degrees C
Motor Type
Brushless DC
Maximum Viscosity
20,000 cps
Mixing Speed - Minimum
40 RPM
Plug Type
Standard
Display Type
Digital

Description

Overhead Mixer, Volume 25 L, Max. Viscosity 20,000 cps, Maximum Torque 90 N-cm, HP 0.1, Operating Speed 40 to 2010 rpm, Mixing Speed Type Variable, Voltage 100/240V, Reversible Yes, Plug Style - Lab Equipment Standard, Through Shaft Yes, Overall Height 9 3/4 in, Overall Length 11 in, Overall Width 3 in, Amps 2.5/3.8, Shaft Dia. 10 mm
