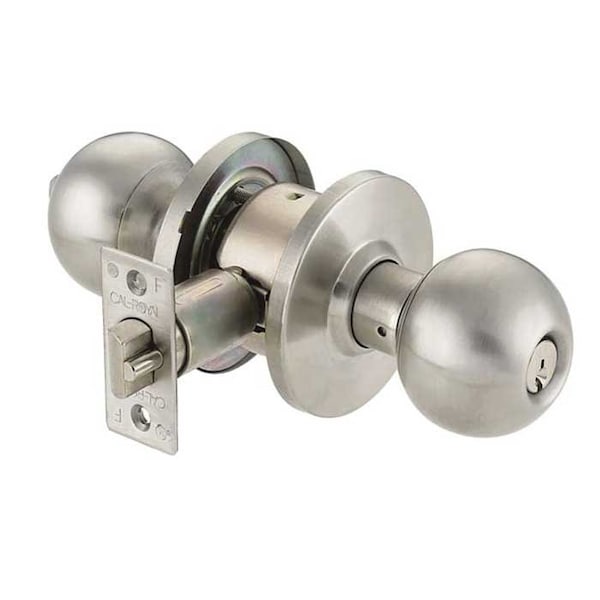

Door Knob Lockset, 1 3/8-1 3/4" Thick

Name: Door Knob Lockset, 1 3/8-1 3/4" Thick
Brand: Cal-Royal
SKU: G309480937
Price: 111.99 USD
Availability: InStock

111.99

/ea

Free Shipping & Returns

Strike Plate Width

1 1/4 in

Number of Pins

Application

Commercial, Residential

Strike Plate Height

4 7/8 in

Lockset Style

Rose

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

MFR #: BA09-32D
Zoro #: G309480937
UPC #: -
Country of Origin: China
Number of Pins: 6
Application: Commercial, Residential
Lockset Style: Rose
Item: Door Knob Lockset
ANSI Grade: 2
Fire Rating: 3 hr
ANSI/BHMA Finish: Satin Stainless Steel
Standards: ANSI A156.2, UBC 7-2-1997, UL Listed, UL10C
Ligature-Resistant: Not Ligature-Resistant
UL Fire Rating: UL10C
Locking/Unlocking Access - Outside: Keyway
Visual Indicator Message: No Message
Backset: 2 3/4 in
Locking/Unlocking Access - Inside: Keyway
Includes Core: Core Included
Mortise/Cylindrical: Cylindrical
Latch Bolt/Dead Bolt: Dead Latch
Lockset Function: Institutional, Utility
Trim Plate Shape: Round
Lockset Function ANSI Code: F87
Cylinder Core Type: Conventional Core Cylinder
Hand Orientation: Non-Handed
Keyway Type: Schlage C
Lockset Type: Mechanical
Lockset Handle Type: Knob
Strike Type: ASA, Square Corner
Features: Concealed Screw Mounting, Long Spindle Hub Eliminates Hub Wobble, Meets the Buy American Act, Standard Duty

Strike Plate Width: 1 1/4 in
Strike Plate Height: 4 7/8 in
Strike Plate Lip Length: 1 1/4 in
Door Thickness - Maximum: 1 3/4 in
Door Thickness - Minimum: 1 3/8 in
Fits Chest Size: Concealed Screw Mounting, Long Spindle Hub Eliminates Hub Wobble, Meets the Buy American Act, Standard Duty
