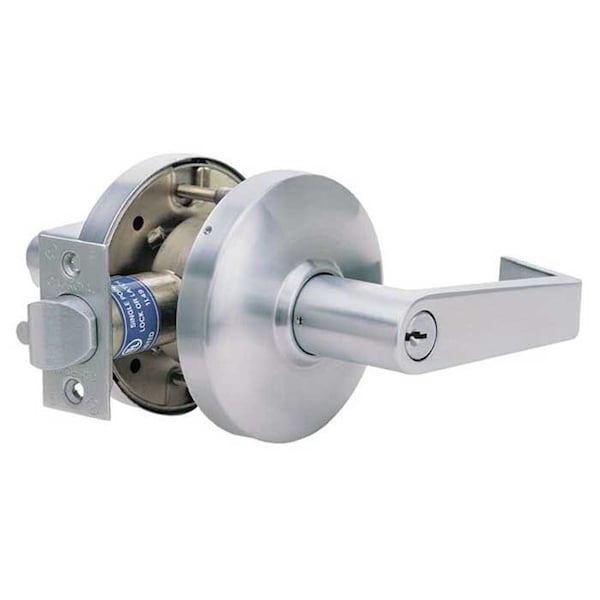

Door Lever Lockset, 1 3/8-1 3/4" Thick

Name: Door Lever Lockset, 1 3/8-1 3/4" Thick
Brand: Cal-Royal
SKU: G409481148
Price: 220.99 USD
Availability: InStock

220.99

/ea

Free Shipping & Returns

Backset

2 3/4 in

Locking/Unlocking Access - Outside

Keyway

Lockset Style

Rose

Lockset Function ANSI Code

F109

Door Thickness - Maximum

1 3/4 in

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

MFR #: CGN00-26D
Zoro #: G409481148
UPC #: -
Country of Origin: Mexico
Backset: 2 3/4 in
Locking/Unlocking Access - Outside: Keyway
Lockset Style: Rose
Lockset Function ANSI Code: F109
Lockset Function: Entrance, Office
Item: Door Lever Lockset
Number of Pins: 6
Cylinder Core Type: Conventional Core Cylinder
Locking/Unlocking Access - Inside: Thumb Turn
Lockset Handle Type: Lever
Trim Plate Shape: Round
Visual Indicator Message: No Message
Ligature-Resistant: Not Ligature-Resistant
Mortise/Cylindrical: Cylindrical
Performance Grade: 1
Includes Core: Core Included
Hand Orientation: Non-Handed
ANSI/BHMA Finish: Satin Chromium-Plated
Standards: ANSI/BHMA A156.2, UL Listed
ANSI Grade: 1
Application: Apartments, Commercial and Public Buildings, Hospitals, Hotel/Motel, Offices, Residential, Schools
ADA Compliant: Yes
Keyway Type: Schlage C
Latch Bolt/Dead Bolt: Latch Bolt
Lockset Type: Mechanical
Strike Type: ASA
Features: Clutch Mechanism Fixed through Bolt Installation, Heavy Duty Cylindrical Lever sets, Thru-Bolted Assembly Through Door with Separate Spring Cage for each Lever

Door Thickness - Maximum: 1 3/4 in
Strike Plate Lip Length: 1 1/4 in
Door Thickness - Minimum: 1 3/8 in
Strike Plate Height: 4 7/8 in
Strike Plate Width: 1 1/4 in
Fits Chest Size: Clutch Mechanism Fixed through Bolt Installation, Heavy Duty Cylindrical Lever sets, Thru-Bolted Assembly Through Door with Separate Spring Cage for each Lever
