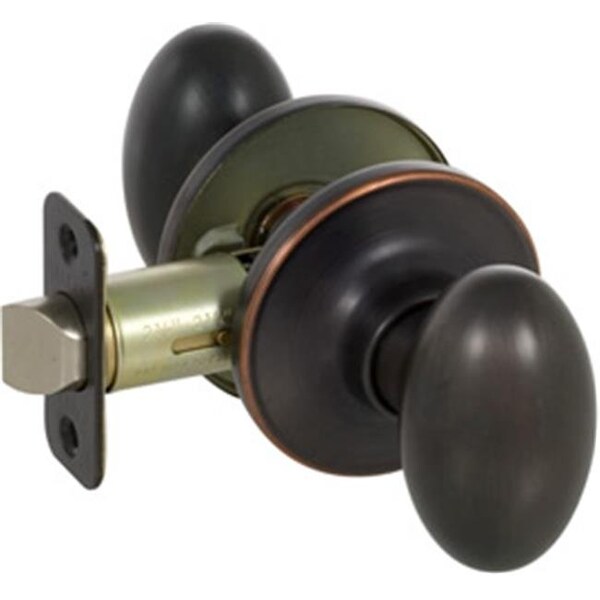

Callan KE1017 Carlyle Series Grade 3 Passage Knob Set; Edged Bronze

Passage style knobs and levers are used to provide transition from one room to another. Both sides of the hardware are always free and have no locking mechanisms. Perfect for hallways, closets, guest rooms, or anywhere that doesn't require a lock.

• Combination Screws that Suit both Wood or Metal Door Mounting.
• Works Well with Both Classic and Functional Decor.
• Tested to 200,000 Cycles.
• Projection from the door - 2-5/8 in.
• Dimension - 2-5/8 L x 2-5/8 W x 2-5/8 H in.
• Item Weight - 1.1 lbs.

• Door Prep - Cross bore - 2-1/8 in., Edge bore - 1 in., Latch face - 1 x 2-1/4 in.
• Back set - Fits 2-3/8 in. and 2-3/4 in.
• Door Thickness - 1-3/8 in. ~ 1-3/4 in. door standard.
• Cylinder - KW1 5-pin standard; SC1 5-pin optional Entries packed KA5.
• Latches - Passage - 2-3/8 in. & 2-3/4 in. adj. (9074), Faceplate - 1 x 2-1/4 in. round corner, Bolt - 1/2 in. throw.
• Strikes - 1-3/4 x 2-1/4 in. full lip round corner (9103).
• Wood Screws - Combination screws that suit both wood or metal door mounting.
• Door Handing - Not Required.
• Finish - Edged Bronze.
