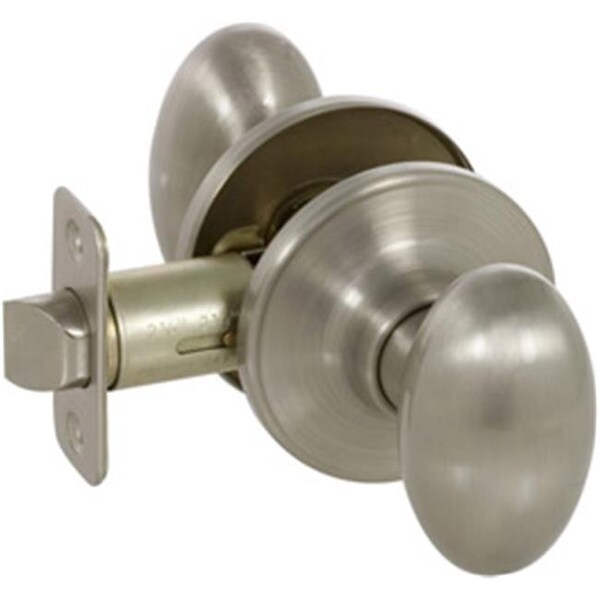

Callan KE1021 Carlyle Series Grade 3 Privacy Knob Set; Satin Nickel (Discontinued)

Privacy style knobs and levers are used to secure the interior rooms of a home. An inside thumb turn both locks and unlocks the hardware, which can also be unlocked from the outside in emergencies by rotating the exterior privacy mechanism. Perfect for master bedrooms, bathrooms, offices/dens, or anywhere privacy is needed.

• Combination Screws that Suit both Wood or Metal Door Mounting.
• Works Well with Both Classic and Functional Decor.
• Tested to 200,000 Cycles.
• Projection from the door - 2-5/8 in.
• Dimension - 2-5/8 L x 2-5/8 W x 2-5/8 H in.
• Item Weight - 1.1 lbs.

• Door Prep - Cross bore - 2-1/8 in., Edge bore - 1 in., Latch face - 1 x 2-1/4 in.
• Back set - Fits 2-3/8 in. and 2-3/4 in.
• Door Thickness - 1-3/8 in. ~ 1-3/4 in. door standard.
• Cylinder - KW1 5-pin standard; SC1 5-pin optional Entries packed KA5.
• Latches - Privacy - 2-3/8 in. & 2-3/4 in. adj. (9074), Faceplate - 1 x 2-1/4 in. round corner, Bolt - 1/2 in. throw.
• Strikes - 1-3/4 x 2-1/4 in. full lip round corner (9103).
• Wood Screws - Combination screws that suit both wood or metal door mounting.
• Door Handing - Not Required.
• Finish - Satin Nickel.
