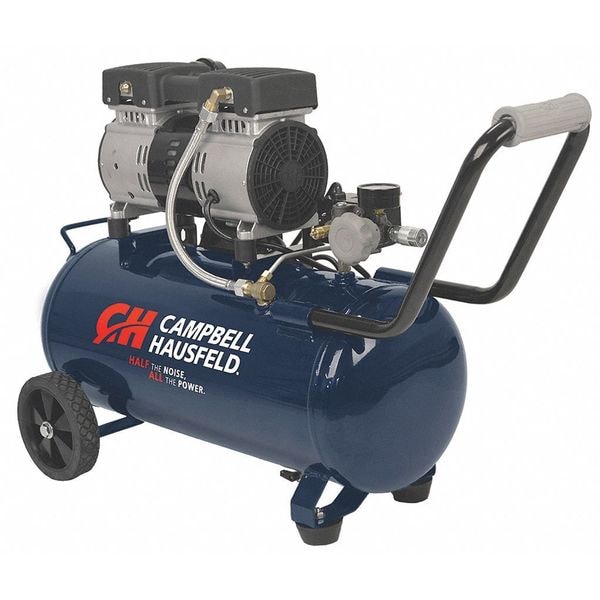

Air Compressor, 1.0 HP, 120VAC, Tank 8 gal.

  • Mfr # DC080500
  • Zoro # G9529670
product price:
$
331.99
/ea
Free Shipping & Returns

Key Features

Tank Size
8 gal.
Voltage
110V, 120V
Max. Pressure
125 psi
Phase
Single Phase
HP
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DC080500
Zoro #
G9529670
UPC #
045564642181
Country of Origin
China

Dimensions

Tank Size
8 gal.
Overall Length
27 in
Overall Height
23.31 in
Overall Width
11.7 in
Tank Size - Air Compressor
8.0 gal
Outlet Size
1/4 in
Air Tank Size
8 gal
Wire Rope Length
27 in
Length
27 in

Details

Voltage
110V, 120V
Max. Pressure
125 psi
Phase
Single Phase
HP
1
Tank Type
Hot Dog
Free Air CFM @ Max. Pressure
2.4 @ 90 psi
Includes
1/4 in Outlet Coupler, 1/4 in Turn Ball Valve Drain, On/Off Pressure Switch, Outlet Regulator and Gauge, Pressure Relief Valve, Tank Pressure Gauge, Wheels
Compressor Type
Quiet Air Compressor
Weight
68 lb
Standards
ETL
Lubrication Type
Oil Free
Free Air CFM @ 90 PSI
2.4
Item - Air Compressor
Portable Air Compressor
dBA @ 3 Feet
68.0
Motor RPM
1,750 RPM
Lubrication Type - Air compressor
Oil Free
Max. Pressure - Air Compressor
125 psi
Motor Type
Induction
Cylinder Material
Aluminum
Item
Portable Air Compressor
(F)NPT Outlet
1/4 in
Full Load Amps
7 A
HP - Air Compressor
1.0 hp
Free Air CFM @ Max. Pressure - Air Compressor
2.0
Weight - Air Compressor
68 lb
Free Air CFM @ 90 PSI - Air Compressor
2.4
Tank Style - Air Compressor
Hot Dog
Input Voltage - Air Compressor
120V AC
Avg. Pump Life
2,000 hr
Maximum Speed
1,750 RPM
Electrical Connection
Cord with Plugs
Input Voltage
120V AC
Average Pump Life
2,000 hr
Current Rating
7.5 A
Output Power
1 hp
Number of Stages
1
Number of Cylinders
2
Outlet Gender
Female
Pump Type
Piston
Outlet Type
NPT
Maximum Operating Pressure
125 psi
Air Tank Style
Hot Dog
Free Air Flow Rate
2.4 cfm
Duty Cycle
Intermittent
Sound Level
68 dBA

Description

Portable Air Compressor, Lubrication Type Oil Free, Air Tank Style Hot Dog, Output Power 1 hp, Free Air Flow Rate 2.4 cfm, Maximum Operating Pressure 125 psi, Air Tank Size 8 gal, Input Voltage 120V AC, Current Rating 7.5 A, Sound Level 68 dBA, Weight 68 lb, Pump Type Piston, Number of Stages 1, Motor Type Induction
