Shop CANARM

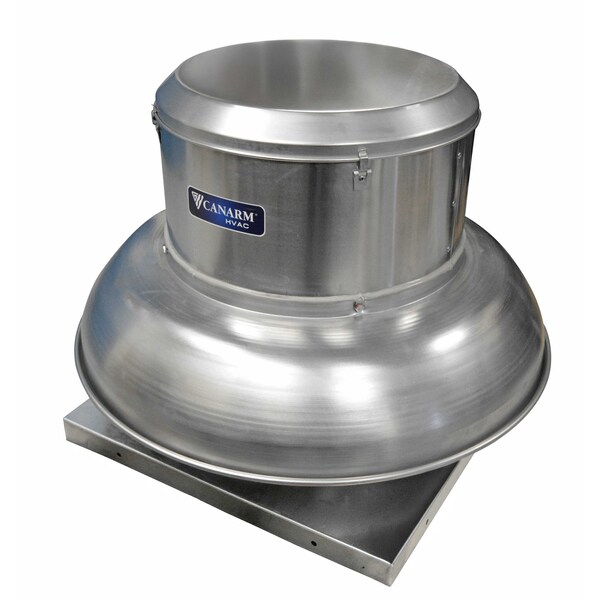

Downblast Exhauster, 21-1/4 in Wheel Dia.

  • Mfr # ALX210-DB

  • Zoro # G807963840

product price:
$
1,091.99
/ea
Additional $140.00 delivery surcharge applies per item.
See details

Key Features

Maximum Motor Speed
1,300 RPM
Standards
cETLus
Wheel Diameter
21 1/4 in
Overall Diameter
43 3/4 in
Housing Material
Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ALX210-DB
Zoro #
G807963840
UPC #
062345398532
Country of Origin
Canada

Dimensions

Wheel Diameter
21 1/4 in
Overall Diameter
43 3/4 in
Base Length
33 1/8 in
Cutout Size
29 in
Propeller Shaft Diameter
1 in
Base Height
2.5 in
Overall Height
36 1/4 in
Overall Length
43 3/4 in
Overall Width
43 3/4 in
Base Width
33.1 in
Wire Rope Length
43 3/4 in
Length
43 3/4 in

Details

Item
Downblast Exhauster
Maximum Motor Speed
1,300 RPM
Standards
cETLus
Housing Material
Aluminum
Application
Commercial Buildings, Factories, Offices, Warehouses
Mount Type
Roof Curb
For Air Type
Clean Air
Maximum Airflow
6,500 cfm
Includes Drive Package
No
Wheel Material
Aluminum
Wheel Type
Backward Inclined
Series
ALX
Includes Motor
No
Maximum Static Pressure
2 1/4 in wc
Maximum Motor Horsepower
3 hp
Features
Quick Release Latches for Easy Motor Access, Standard Bird Screen
Minimum Airflow
2,000 cfm
Drive Type
Belt Drive
Electrical Connection
Wire Leads
Housing Material Fabrication
Spun
Weight
176 lb
Minimum Motor Horsepower
1/2 hp
For High-Static Pressure Applications
Yes
Minimum Motor Speed
1,300 RPM
Assembly
Unassembled
Base Shape
Square

Description

Downblast Exhauster, Drive Type Belt Drive, Assembly Unassembled, Mounting Location Roof and Wall, Wheel Diameter 21 1/4 in, Base Diameter Not Applicable, Base Length 33 1/8 in, Base Width 33.1 in, Base Shape Square, Minimum Airflow 2,000 cfm, Maximum Airflow 6,500 cfm, Maximum Motor Horsepower 3 hp, Minimum Motor Horsepower 1/2 hp, Minimum Motor Speed 1,300 RPM, Maximum Motor Speed 1,300 RPM, Maximum Static Pressure 2 1/4 in wc, For High-Static Pressure Applications Yes, Standards cETLus
