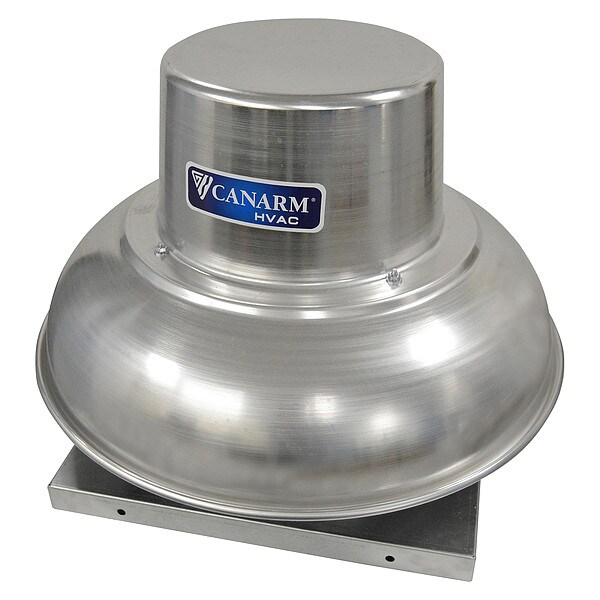

Canarm Downblast Exhauster ALX120-DD033V - main

Downblast Exhauster

  • Mfr # ALX120-DD033V

  • Zoro # G807967411

product price: $537.99
/ea
Item requires special delivery charges. A $155.00 per item surcharge will be applied.

Key Features

Motor Enclosure
Open Dripproof
Housing Material
Aluminum
Phase
1
Speed Controllable
Variable Speed
Application
Commercial Buildings, Factories, Offices, Warehouses
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ALX120-DD033V
Zoro #
G807967411
UPC #
062345385075
Country of Origin
Canada

Dimensions

Base Length
19 in
Wheel Diameter
12 in
Base Width
19 in
Overall Width
25 in
Overall Height
19 in
Overall Length
25 in
Overall Diameter
19 in

Details

Item
Downblast Exhauster
Motor Enclosure
Open Dripproof
Housing Material
Aluminum
Phase
1
Speed Controllable
Variable Speed
Application
Commercial Buildings, Factories, Offices, Warehouses
Exhaust Airflow @ 0.000 in SP
1,300 cfm
Standards
cETLus
Includes Drive Package
Yes
Airflow @ 0.000 in SP
1,300 cfm
Electrical Connection
Wire Leads
Number of Speeds
Variable
Series
ALX
Power Source
Electric Corded
High-Efficiency Motor
No
Features
Quick Release Latches for Easy Motor Access
Includes Motor
Yes
Drive Type
Direct Drive
Motor Horsepower
1/3 hp
Motor Speed
1,650 RPM
Wheel Type
Backward Inclined
Exhaust Airflow @ 0.500 in SP
1,000 cfm
For High-Static Pressure Applications
Yes
Maximum Static Pressure
1 in wc
Frequency
50 Hz, 60 Hz
Exhaust Airflow @ 0.250 in SP
1,200 cfm
Housing Material Fabrication
Spun
Wheel Material
Aluminum
For Air Type
Clean Air
Assembly
Assembled
Nameplate Voltage
115/230V AC
Base Shape
Square

Description

Downblast Exhauster, Drive Type Direct Drive, Assembly Assembled, Wheel Diameter 12 in, Base Diameter Not Applicable, Base Length 19 in, Base Width 19 in, Base Shape Square, Nameplate Voltage 115/230V AC, Phase 1, Motor Horsepower 1/3 hp, Exhaust Airflow @ 0.000 in SP 1,300 cfm, For High-Static Pressure Applications Yes, High-Efficiency Motor No, For Air Type Clean Air, Includes Drive Package Yes, Includes Motor Yes, Mounting Location Roof and Wall, Maximum Static Pressure 1 in wc
