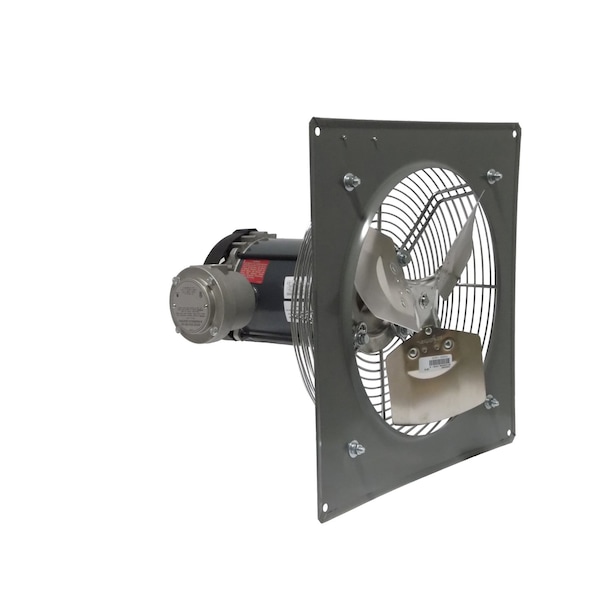

Canarm Exhaust Fan, Assembled, 1,725 RPM P12-4 - main

Exhaust Fan, Assembled, 1,725 RPM

  • Mfr # P12-4

  • Zoro # G214603858

product price: $1,123.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure
Totally Enclosed Air Over
Number of Blades
3
Standards
OSHA
Phase
1
Frame Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P12-4
Zoro #
G214603858
UPC #
-
Country of Origin
Canada

Dimensions

Overall Depth
11 in
For Cut-Out Height
12 in
For Cut-Out Width
12 in
For Maximum Wall Thickness
6 in
Manufacturer Warranty Length
1 yr
For Minimum Wall Thickness
6 in
Overall Height
17 1/4 in
Overall Diameter
12 in
Blade Diameter
12 in
Overall Width
17 1/4 in

Details

Motor Enclosure
Totally Enclosed Air Over
Number of Blades
3
Item
Exhaust Fan
Standards
OSHA
Phase
1
Frame Material
Steel
Motor Type
Single Phase
Exhaust Airflow @ 0.000 in SP
1,670 cfm
Assembled
Assembled
Maximum Static Pressure
0.25 in wg
Motor Horsepower
1/3 hp
Mounting Orientation
Horizontal
Ring-Mount Style
Flange
Electrical Connection
Hardwired
Fan Style
Panel
Supply Airflow @ 0.000 in SP
1,600 cfm
Control Type
Toggle Switch
Drive Type
Direct Drive
Includes Dehumidistat
No
Full Load Current
3.3 A, 6.4 A
Ventilation Type
Exhaust
Guard Finish
Chrome Plated
Number of Speeds
1
Thermal Protection
Yes
Blade Material
Galvanized Steel
Housing Material
Steel
Hazardous Location Class
Class 1 Div 1
Maximum Noise Level
63 dBA
Guard Material
Steel
Maximum Airflow
1,670 cfm
Motor Speed
1,725 RPM
Guard Type
Intake
Number of Fans
1
Frame Finish
Powder Coated
Nameplate Voltage
115V AC
Noise Level @ 0.000 in SP @ 5 ft
11.3 sones
Housing Finish
Unfinished
Includes Motor
Yes
Maximum Ambient Operating Temperature
104 Degrees F

Description

SINGLE SPEED EXPLOSION PROOF FAN
