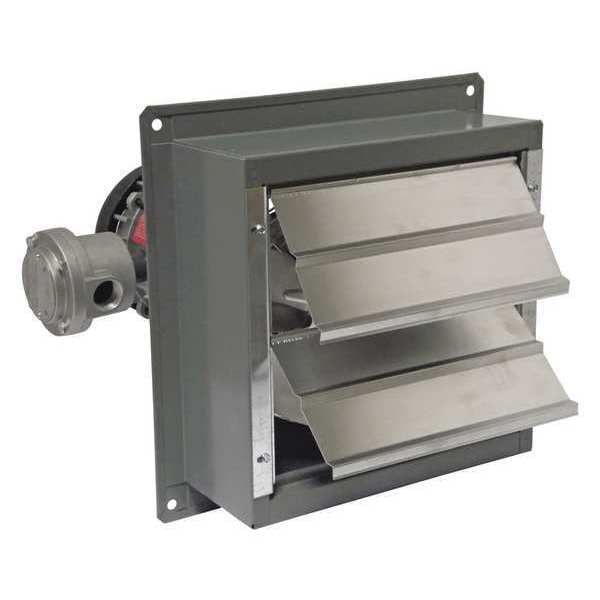

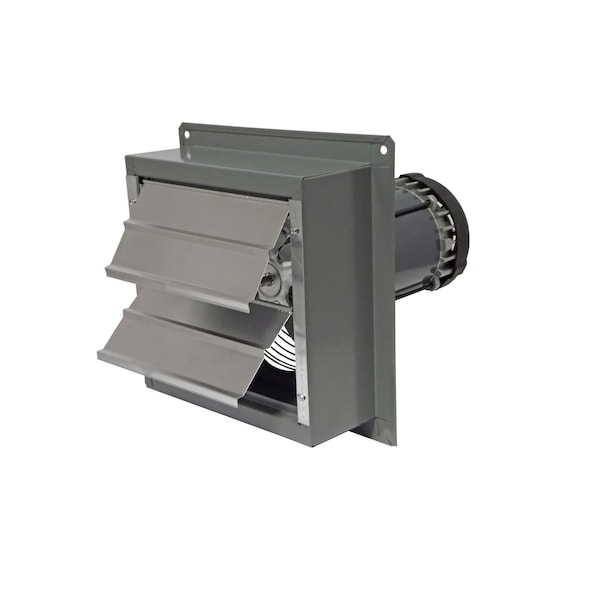

Exhaust Fan, Hazardous Location, 08 In
Mfr # SD08-XPF
Zoro # G7492746
product price: $912.99
/ea
Free Shipping & Returns
Key Features
Max. Depth (In.)
17 1/2 in
Exhaust/Supply Fan Item
Exhaust Fan
Phase
1
Motor Type
Explosion Proof
Motor Enclosure
Totally Enclosed Fan Cooled
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SD08-XPF
Zoro #
G7492746
UPC #
062345350349
Country of Origin
Canada
Dimensions
Max. Depth (In.)
17 1/2 in
Dimension A (In.)
13 1/4 in
Flange Width (In.)
1 1/4 in
Width (In.)
13 1/4 in
Venturi Depth (In.)
5/8 in
Dimension D (In.)
12 in
Height (In.)
13 1/4 in
Dimension B (In.)
17 1/2 in
Dimension C (In.)
4 in
Blade Dia.
8 in
Shaft Dia. (In.)
1/2 in
Flange Depth (In.)
1 1/4 in
Outside Dia. (In.)
7 1/8 in
Inside Dia. (In.)
8 1/5 in
Venturi Clearance Dia. (In.)
1/8 in
Venturi Depth
5/8 in
Flange Width
1 1/4 in
Blade Diameter
8 in
For Cut-Out Width
12 in
Manufacturer Warranty Length
1 yr
For Cut-Out Diameter
12 in
Overall Depth
17 1/2 in
Venturi Diameter
1/8 in
For Minimum Wall Thickness
4 in
Flange Depth
1 1/4 in
Shaft Diameter
1/2 in
For Cut-Out Height
11 in
For Maximum Wall Thickness
4 in
Overall Diameter
13 1/4 in
Overall Height
13 1/4 in
Overall Width
13 1/4 in
Description
Shutter Mounted Hazardous Location Exhaust Fan, Assembled Assembled, Blade Diameter 8 in, Blade Material Aluminum, Control Type Toggle Switch, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 320 cfm, For Cut-Out Height 11 in, For Cut-Out Width 12 in, For Maximum Wall Thickness 4 in, For Minimum Wall Thickness 4 in, Frame Finish Powder Coated, Frame Material Steel, Guard Finish Chrome, Guard Material Steel, Guard Type Intake
