  9. Exhaust Fan, Hazardous Location, 14 In

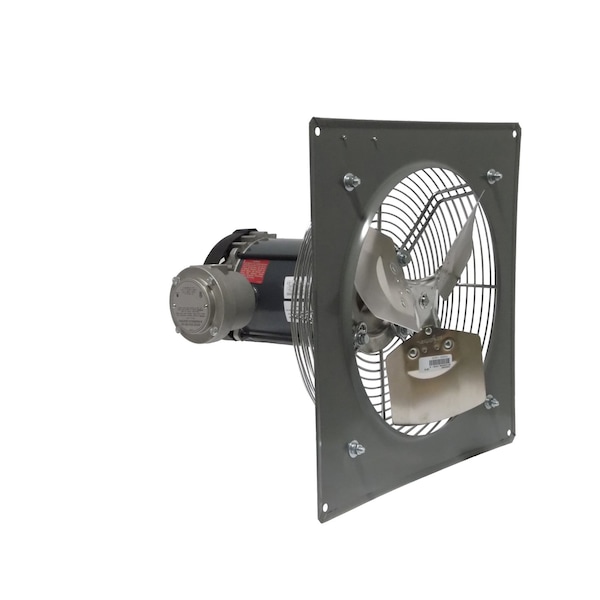

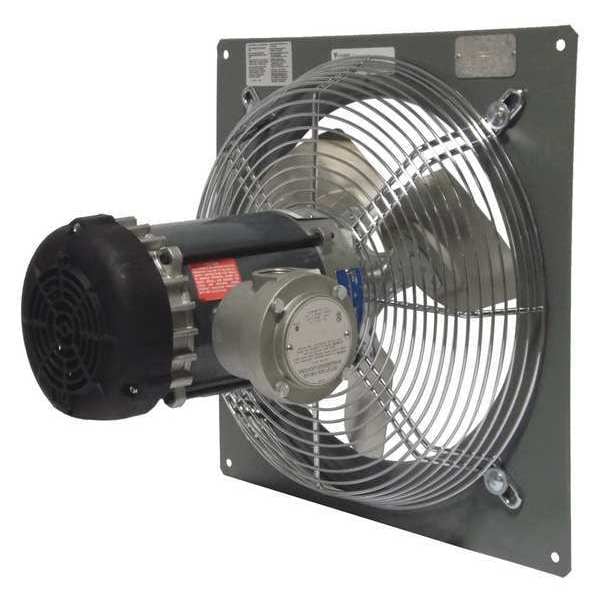

Canarm Exhaust Fan, Hazardous Location, 14 In P14-4 - main

Exhaust Fan, Hazardous Location, 14 In

  • Mfr # P14-4

  • Zoro # G7022547

product price: $854.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

Venturi Depth (In.)
5/8 in
Max. Ambient Temp. (F)
104 Degrees F
Fan Voltage
115/208-230V AC
Agency Compliance
cETLus
Hazardous Location Class
Class I, Div 1, Group C and D; Class II, Div 1, Group F and G
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P14-4
Zoro #
G7022547
UPC #
062345206714
Country of Origin
Canada

Dimensions

Venturi Depth (In.)
5/8 in
Shaft Dia. (In.)
1/2 in
Dimension A (In.)
19 1/4 in
Venturi Clearance Dia. (In.)
1/8 in
Width (In.)
19 1/4 in
Outside Dia. (In.)
19 1/4 in
Inside Dia. (In.)
18 in
Dimension B (In.)
13 3/4 in
Blade Dia.
14 in
Dimension C (In.)
18 in
Flange Width (In.)
1 1/2 in
Dimension D (In.)
18 in
Height (In.)
19 1/4 in
Max. Depth (In.)
13 3/4 in
Flange Width
1 1/2 in
Venturi Depth
5/8 in
Shaft Diameter
1/2 in
For Cut-Out Width
18 in
Manufacturer Warranty Length
1 yr
Overall Depth
13 3/4 in
Venturi Diameter
1/8 in
Overall Height
19 1/4 in
For Cut-Out Height
18 in
Overall Diameter
19 1/4 in
Blade Diameter
14 in
For Cut-Out Diameter
18 in
Overall Width
19 1/4 in

Details

Item
Panel Mounted Hazardous Location Exhaust Fan
Max. Ambient Temp. (F)
104 Degrees F
Fan Voltage
115/208-230V AC
Agency Compliance
cETLus
Hazardous Location Class
Class I, Div 1, Group C and D; Class II, Div 1, Group F and G
CFM @ 0.125-In. SP
2,000 cfm
Watts
250 W
Bearing Type
Ball
For Use With
General Ventilation Applications, Hazardous Locations, Explosion Proof, Panel Mounted Exhaust Fan
Drive Package Included
No
Exhaust/Supply Fan Motor HP
1/3 hp
Motor Enclosure
Totally Enclosed Air Over
Motor Insulation
Class B
Phase
1
Mounting Holes O.C. (In.)
18 in
Propeller Material
Aluminum
Hz
60
Number of Blades
3
Motor Type
Explosion Proof
Frame Material
Steel
Mounting Position
Horizontal
Motor RPM
1,725 RPM
CFM @ 0.250-In. SP
1,950 cfm
Full Load Amps
6.6/3.1-3.3
CFM @ 0.000-In. SP
2,190 cfm
Sones @ 0.000-In. SP @ 5 Ft.
15
Drive Package With Motor Included
No
Type
Explosion Proof
Frame Finish
Powder Coated
Includes
EPFC Motor Enclosure, Explosion Proof Motor, Wire Guard
Exhaust/Supply Fan Item
Exhaust Fan
Standards
OSHA Compliant
Exhaust Airflow @ 0.125 in SP
2,000 cfm
Guard Type
Intake
Noise Level @ 0.100 in SP @ 5 ft
15 sones
Maximum Airflow
2,190 cfm
Vent Design
Ductless
Housing Finish
Powder-Coated
Motor Horsepower
1/3 hp
Guard Material
Steel
Nameplate Voltage
115/208-230V AC
Supply Airflow @ 0.000 in SP
2,190 cfm
Maximum Noise Level
15 sones
Mounting Orientation
Horizontal
Number of Speeds
1
Speed Controllable
No
Maximum Ambient Operating Temperature
104 Degrees F
Includes Motor
No
Frequency
60 Hz
Blade Material
Aluminum
Exhaust Airflow @ 0.000 in SP
2,190 cfm
Fan Style
Panel
Number of Fans
1
Electrical Connection
Hardwired
Exhaust Airflow @ 0.100 in SP
2,080 cfm
Wattage
250 W
Control Type
Toggle Switch
Ventilation Type
Exhaust
Motor Speed
1,725 RPM
Guard Finish
Chrome
Includes Grill
No
Exhaust Airflow @ 0.250 in SP
1,950 cfm
Method of Construction
Stamped
Assembled
Assembled
Includes Dehumidistat
No
Drive Type
Direct Drive
Discharge Direction
Horizontal
Noise Level @ 0.000 in SP @ 5 ft
15 sones
Housing Material
Steel
Full Load Current
0.5 A
Speed Control
No
Voltage
115/208-230

Description

Panel Mounted Hazardous Location Exhaust Fan, Assembled Assembled, Blade Diameter 14 in, Blade Material Aluminum, Control Type Toggle Switch, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 2,190 cfm, For Cut-Out Height 18 in, For Cut-Out Width 18 in, Frame Finish Powder Coated, Frame Material Steel, Guard Finish Chrome, Guard Material Steel, Guard Type Intake, Hazardous Location Class Class I, Div 1, Group C and D; Class II, Div 1, Group F and G
