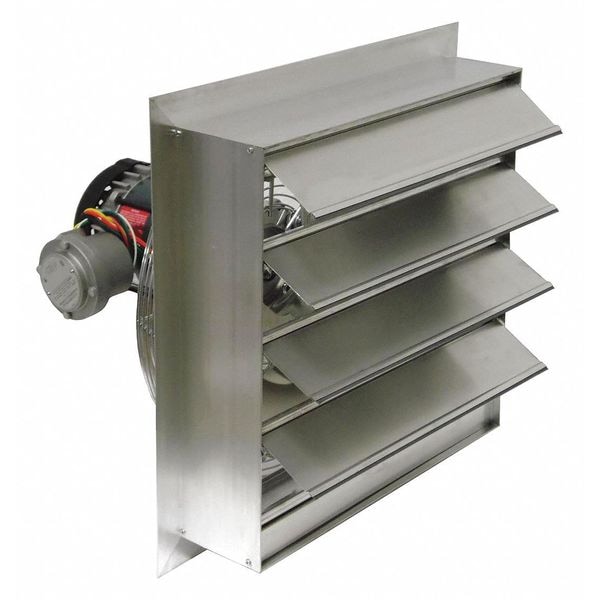

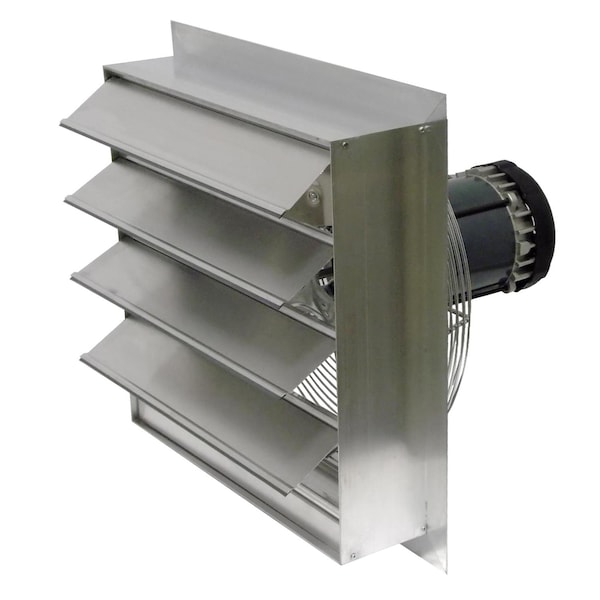

ShtMt Hzd ExhFn, 18In Bl, Alm, 115/208-230V

  • Mfr # AX18-4
  • Zoro # G7202054
product price:
$
1,298.99
/ea
Free Shipping & Returns

Key Features

Dimension B (In.)
19 3/4 in
Exhaust/Supply Fan Item
Exhaust Fan
Dimension C (In.)
5 in
Propeller Material
Aluminum
Exhaust/Supply Fan Motor HP
1/3 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AX18-4
Zoro #
G7202054
UPC #
062345206028
Country of Origin
Canada

Dimensions

Dimension B (In.)
19 3/4 in
Dimension C (In.)
5 in
Width (In.)
22 3/4 in
Dimension A (In.)
22 3/4 in
Venturi Clearance Dia. (In.)
1/8 in
Venturi Depth (In.)
5/8 in
Height (In.)
22 3/4 in
Dimension D (In.)
14 in
Blade Dia.
18 in
Shaft Dia. (In.)
1/2 in
Outside Dia. (In.)
22 3/4 in
Flange Width (In.)
1 1/2 in
Max. Depth (In.)
19 in
Flange Width
1 1/2 in
Venturi Depth
5/8 in
For Cut-Out Height
19 in
Overall Diameter
22 3/4 in
Venturi Diameter
1/8 in
Overall Width
22 3/4 in
Shaft Diameter
1/2 in
For Maximum Wall Thickness
5 in
Blade Diameter
18 in
For Minimum Wall Thickness
5 in
Overall Depth
19 in
For Cut-Out Width
19 in
Overall Height
22 3/4 in
Manufacturer Warranty Length
1 yr

Details

Item
Shutter Mounted Hazardous Location Exhaust Fan
Exhaust/Supply Fan Item
Exhaust Fan
Propeller Material
Aluminum
Exhaust/Supply Fan Motor HP
1/3 hp
Frame Material
Aluminum
CFM @ 0.125-In. SP
2,950 cfm
Sones @ 0.000-In. SP @ 5 Ft.
23
CFM @ 0.000-In. SP
3,200 cfm
Motor Insulation
Class B
For Use With
General Ventilation Applications, Hazardous Locations, Explosion Proof, Shutter Mounted Exhaust Fan
Motor Type
Explosion Proof
Max. Ambient Temp. (F)
104 Degrees F
Motor Enclosure
Totally Enclosed Air Over
CFM @ 0.250-In. SP
2,625 cfm
Drive Package With Motor Included
No
Frame Finish
Powder Coated
Type
Explosion Proof
Agency Compliance
cETLus
Phase
1
Hz
60
Motor RPM
1,725 RPM
Hazardous Location Class
Class I, Div 1, Group C and D; Class II, Div 1, Group F and G
Includes
Housing, EPFC Motor Enclosure, Explosion Proof Motor, Shutter, Wire Guard
Watts
250 W
Drive Package Included
No
Fan Voltage
115/208-230V AC
Mounting Position
Horizontal
Full Load Amps
6.6/3.1-3.3
Bearing Type
Ball
Number of Blades
3
Standards
OSHA Compliant
Control Type
Rotary Dial
Guard Type
Intake
Wattage
250 W
Discharge Direction
Horizontal
Vent Design
Ductless
Includes Motor
No
Method of Construction
Stamped
Exhaust Airflow @ 0.125 in SP
2,950 cfm
Exhaust Airflow @ 0.100 in SP
3,050 cfm
Nameplate Voltage
115/208-230V AC
Housing Finish
Aluminum
Motor Horsepower
1/3 hp
Fan Style
Shutter-Mounted
Maximum Noise Level
23 sones
Full Load Current
6.6 A
Maximum Ambient Operating Temperature
104 Degrees F
Blade Material
Aluminum
Speed Controllable
No
Frequency
60 Hz
Guard Material
Steel
Assembled
Assembled
Includes Dehumidistat
No
Exhaust Airflow @ 0.250 in SP
2,625 cfm
Exhaust Airflow @ 0.000 in SP
3,200 cfm
Motor Speed
1,725 RPM
Mounting Orientation
Horizontal
Noise Level @ 0.000 in SP @ 5 ft
23 sones
Guard Finish
Chrome
Number of Fans
1
Noise Level @ 0.100 in SP @ 5 ft
23 sones
Ventilation Type
Exhaust
Housing Material
Aluminum
Includes Grill
No
Maximum Airflow
3,200 cfm
Drive Type
Direct Drive
Supply Airflow @ 0.000 in SP
3,200 cfm
Number of Speeds
1
Electrical Connection
Hardwired
Voltage
115/208-230
Speed Control
No

Description

Shutter Mounted Hazardous Location Exhaust Fan, Assembled Assembled, Blade Diameter 18 in, Blade Material Aluminum, Control Type Rotary Dial, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 3,200 cfm, For Cut-Out Height 19 in, For Cut-Out Width 19 in, For Maximum Wall Thickness 5 in, For Minimum Wall Thickness 5 in, Frame Finish Powder Coated, Frame Material Aluminum, Guard Finish Chrome, Guard Material Steel, Guard Type Intake
