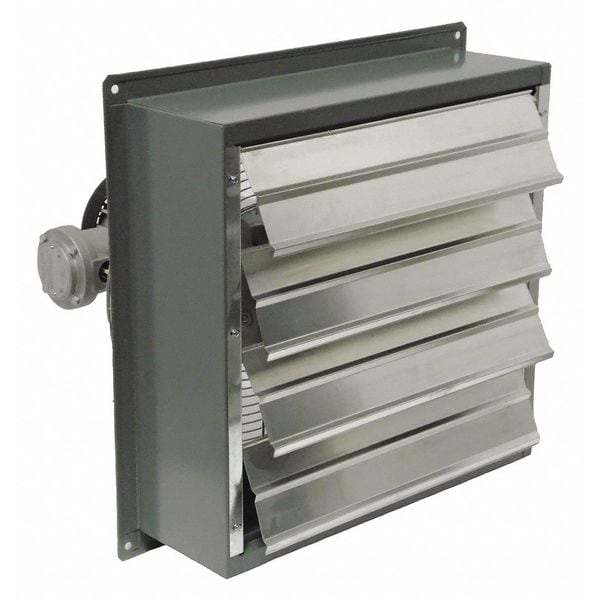

Exhaust Fan, Hazardous Location, 18 In

  • Mfr # SD18-XPF

  • Zoro # G4974051

product price:
$
941.99
/ea
Free Shipping & Returns

Key Features

Max. Ambient Temp. (F)
104 Degrees F
Max. Depth (In.)
20 1/2 in
Shaft Dia. (In.)
1/2 in
Motor Enclosure
Totally Enclosed Fan Cooled
CFM @ 0.250-In. SP
2,920 cfm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SD18-XPF
Zoro #
G4974051
UPC #
062345141138
Country of Origin
Canada

Dimensions

Max. Depth (In.)
20 1/2 in
Shaft Dia. (In.)
1/2 in
Dimension C (In.)
6 in
Venturi Clearance Dia. (In.)
1/8 in
Dimension D (In.)
22 in
Flange Depth (In.)
1 1/4 in
Height (In.)
23 1/4 in
Dimension A (In.)
23 1/4 in
Flange Width (In.)
1 1/4 in
Blade Dia.
18 in
Dimension B (In.)
20 1/2 in
Width (In.)
23 1/4 in
Venturi Depth (In.)
5/8 in
Overall Height
23 1/4 in
Overall Width
23 1/4 in
Flange Width
1 1/4 in
Venturi Depth
5/8 in
Shaft Diameter
1/2 in
Manufacturer Warranty Length
1 yr
Venturi Diameter
1/8 in
For Cut-Out Width
21 in
Overall Diameter
23 1/4 in
Overall Depth
20 1/2 in
For Minimum Wall Thickness
6 in
For Maximum Wall Thickness
6 in
For Cut-Out Height
21 in
Blade Diameter
18 in
Flange Depth
1 1/4 in

Details

Item
Shutter Mounted Hazardous Location Exhaust Fan
Max. Ambient Temp. (F)
104 Degrees F
Motor Enclosure
Totally Enclosed Fan Cooled
CFM @ 0.250-In. SP
2,920 cfm
Drive Package Included
No
Number of Blades
3
For Use With
General Ventilation Applications, Hazardous Locations, Explosion Proof, Shutter Mounted Exhaust Fan
Watts
250 W
Exhaust/Supply Fan Item
Exhaust Fan
Phase
1
Motor RPM
1,725 RPM
Mounting Holes O.C. (In.)
22 in
Bearing Type
Ball
Motor Insulation
Class B
Includes
EPFC Motor Enclosure, Explosion Proof Motor, Shutter, Wire Guard
Drive Package With Motor Included
No
Mounting Position
Horizontal
Agency Compliance
cETLus, OSHA Compliant Guards
Exhaust/Supply Fan Motor HP
1/3 hp
Type
Explosion Proof
CFM @ 0.000-In. SP
3,200 cfm
Motor Type
Explosion Proof
Frame Finish
Powder Coated
Frame Material
Steel
Hz
60
Propeller Material
Aluminum
Fan Voltage
115/208-230V AC
Hazardous Location Class
Class I, Group C and D; Class II, Group F and G
Full Load Amps
6.6/3.3
Standards
OSHA Compliant
Voltage
115/208-230
Maximum Airflow
3,200 cfm
Speed Controllable
No
Guard Type
Intake
Motor Speed
1,625 RPM
Housing Finish
Powder-Coated
Number of Fans
1
Assembled
Assembled
Vent Design
Ductless
Ventilation Type
Exhaust
Thermal Protection
Yes
Includes Motor
No
Control Type
Toggle Switch
Includes Grill
No
Fan Style
Shutter-Mounted
Full Load Current
6.6 A
Maximum Ambient Operating Temperature
104 Degrees F
Maximum Noise Level
24 sones
Drive Type
Direct Drive
Exhaust Airflow @ 0.250 in SP
2,920 cfm
Electrical Connection
Hardwired
Motor Horsepower
1/3 hp
Nameplate Voltage
115V AC
Number of Speeds
1
Noise Level @ 0.000 in SP @ 5 ft
24 sones
Blade Material
Aluminum
Exhaust Airflow @ 0.000 in SP
3,200 cfm
Exhaust Airflow @ 0.100 in SP
3,090 cfm
Method of Construction
Stamped
Housing Material
Steel
Noise Level @ 0.100 in SP @ 5 ft
24 sones
Wattage
250 W
Mounting Orientation
Horizontal
Guard Finish
Chrome
Supply Airflow @ 0.000 in SP
3,200 cfm
Includes Dehumidistat
No
Guard Material
Steel
Frequency
60 Hz

Description

Shutter Mounted Hazardous Location Exhaust Fan, Assembled Assembled, Blade Diameter 18 in, Blade Material Aluminum, Control Type Toggle Switch, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 3,200 cfm, For Cut-Out Height 21 in, For Cut-Out Width 21 in, For Maximum Wall Thickness 6 in, For Minimum Wall Thickness 6 in, Frame Finish Powder Coated, Frame Material Steel, Guard Finish Chrome, Guard Material Steel, Guard Type Intake
